| Brand Name: | SHX |
| Model Number: | SCF-138 |
| MOQ: | 1 set |
| Price: | USD 7500-10000/SET |
| Packaging Details: | Plyfilm or plywood |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |

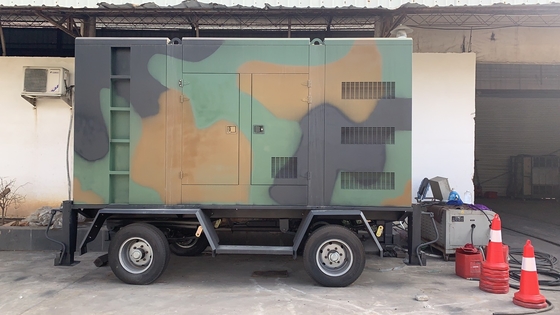

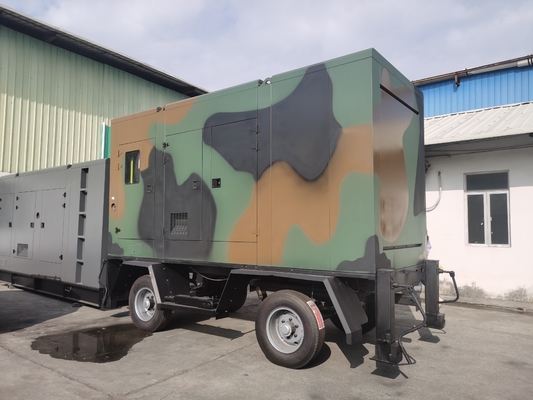

SHX 100kva Trailer Generators With Cummins Diesel Engine For Industrial Use
| Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER | ||
| KVA | KW | KVA | KW | ||||
| SCF138 | 138 | 110 | 125 | 100 | 6BTA5.9-G2 | FLD274C | 6110 |
| Governor Class | ISO8528 G3 |
| Potential Drop | 1% |
| Steady Voltage Regulation | 1% |
| Frequency Drop | Synchronous(0%) |
| Steady-state Frequency | 0.25% |
| R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
| Fuel Consumption Rate ,g/kw.h(L/hr) | 210(19.5) |
| Starting Battery Capacity ,A/hrhhr | 120*2 |
| Total Coolant Capacity ,L | 60 |
This series diesel generator set is powered by Cummins series diesel engine. With the importing of technoloy of Cummins Company (USA). The engine has the feature of low fuel consumption, good power performance, safety and good reliability. This series generator set is used as prime or standby power supply in fieldwork, building, supermarket, industrial and mining factory, oil field, highway, harbour countryside and so on.
Control Panel :
1) Brand: Deepsea, Harsen, Smartgen, etc.
2) Adopt Genset controller with LCD display, taking microprocessor as the core.
3) The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated
electricity /grid electricity.
4) The monitor and display on the genset’s water temperature, oil pressure, rotational speed, battery voltage, running hours,
accumulative total power and number of starts.
5) Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over
voltage, over frequency and phase failure etc.
|
|
