| Brand Name: | SHX |
| Model Number: | SPF358 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

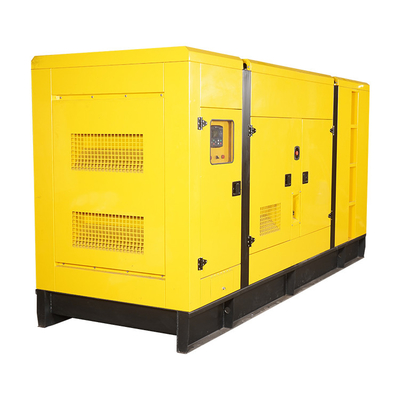

SHX 260kw Perkins Diesel Generator Set 325kva 400v Soundproof Diesel Generator
SHX Soundproof Generator Set Features:
A new kind of acoustic material is used as pugging, noise reducing return-flow wind tunnel is used as generator set's ventilation system, and louver is installed in the window to prevent rains and other intruders. High efficiency silencer with double level structure and another silencer between two levels keep the noise at the lowest level. The box is modular structure with indicator and maintenance doors which make installation, operation and maintenance very convenient. Benefited from the special design, medium low noise diesel generator set's noise can be as low as 70dB (A) (at LP7m). Fuel tank can be installed on it according to customer needs.
Specifications of 260kw perkins diesel generator set
| Genset Model | SPF358 |
| Prime Power | 260KW/325KVA |
| Standby Power | 286KW/358KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50Hz |
| Rated Current | 468A |
| Genset Structure | Silent |
| Dimension | 4200×1400×2100mm |
| Net Weight | 3900KG |
| Noise level | 75dB at 7 meters |
| Fuel Tank Capacity | 8 hours |
| Engine Model | 1706A-E93TAG2 |
| Engine Features | 6-cylinder,4 stroke,water cooled ,Turbo |
| Bore * Stroke | 112mm × 149mm |
| Displacement | 8.8L |
| 12-hour Power(kw) | 270KW/1500 |
| Fuel Consumption g/kw.h | 196 |
| Compression Ratio | 17.5:1 |
| Governor type | Electronic |
| Alternator Model | Farrand / FLD444ES |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |
| Function | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
Features
Our company attaches great importance to after-sales service, the user to establish a computer archive, tracking services, regular inspection services.
For each category generator provided in our company, all could enjoy 12 months or 1000 working hours maintenance.
For helping customers master the operation,we in particular provide free site and training courses of different types of generators.
|
|
