| Brand Name: | SHX |
| Model Number: | SPF880 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

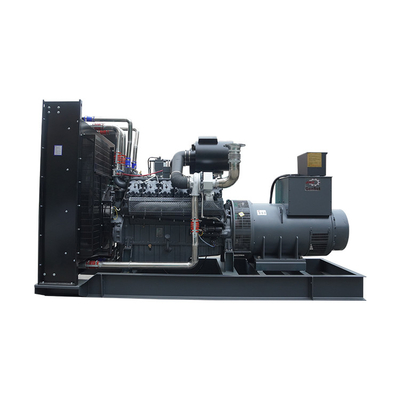

SHX Perkins Diesel Generator Set 640kw Power Plant 800kva Backup Power Generator
Voltage
1) Frequency at 50Hz: Available in 400/230Volts, 415/240Volts, 380/220Volts, 220/127Volts, and 200/115Volts.
2) Frequency at 60Hz: Available in 480/227Volts, 440/254Volts, 220/117Volts, and 208/120Volts.
A Diesel Generator (DG) is a combination of diesel engine with electrical generator (often called an alternator) to generate electricity. DG sets are used in places that have no connection to power grid, and as emergency power-supply if the grid fails. In other words DGs remain the number one choice for standby and emergency power systems. DGs are selected based on the electrical load they are intended to supply,
| 800kva Diesel Generator Set Specification | |
| Model | SPF880 |
| Genset Prime Power | 800KVA / 640KW |
| Engine | Perkins |
| Engine Model | 4006-23TAG3A |
| Engine Type | 4 Stroke, Water Cooled |
| Alternator | Stamford / Leroy Somer / Farrand / Marathon |
| Voltage Regulation | AVR |
| Controller | Deep Sea / ComAp / Smartgen |
| Warranty | 1 year / 1000 running hours |
| Certificate | CE, ISO |
| Place of Origin | Foshan, China |
| Rated Voltage | 230/400V |
| Frequency | 50Hz |
| Rated Current | 1152A |
| Cooling Method | Closed Cycle Water-cooled With Radiator |
| Power Factor | 0.8 Lagging |
| Fuel Injection System | ECU |
| Starting System | Electric Start |
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.
Parallel Control Panel
Parallel control panel enables two or more generator sets, or generator sets and the mains parallel to supply electricity to loads. Parallel control panel box is GGD structure which has manual, semi-auto and auto control.
Manual parallel control panel: Operator analyzes and makes parallel work signal basing on the indicator in the parallel control panel box to parallel generator sets.
With parallel control panel, power supply can be flexible controlled according to power needs.
|
|
