| Brand Name: | SHX |
| Model Number: | SCF619 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

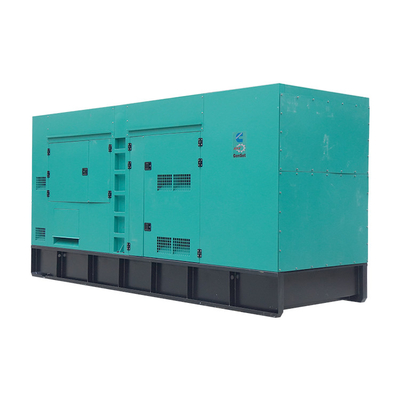

SHX 450kw Electirc Diesel Generators 563kva Emergency Generator Set 495kw Power Genset
Standard Configuration of 450kw diesel generator set :
1) Cummins engine
2) Farrand alternator (Marathon, Stamford, Leroy Somer brand for option)
3) Smartgen control panel (Deepsea brand for option)
4) MCCB circuit breaker
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery, battery charger and battery isolator switch
8) Industrial silencer and flexible exhaust hose
Technical specification of 450kw diesel generator set
| Genset model | SCF619 |
| Genset rated power | 450KW/563KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 810 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 4700×1800×2450 |
| Gross weight (kg) | 5200 |
| Diesel Engine | |
| Brand | CUMMINS |
| Model | KTAA19-G6 |
| Engine type | 6 cylinders in line,4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 19 |
| Bore×Stroke(mm) | 159×159 |
| Compression ratio | 13: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤206 |
| Lube capacity(L) | 38 |
| Alternator | |
| Brand | Farrand |
| Model | FLD544DL |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame. | |
Advantages:
1.Reliable Performance:
Reliable performance is the major advantage of SHX products, which is based on the outstanding design in every aspect and strict QC system.
2.Customer First:
We devote ourselves to develop products to meet customer’s requirements. Our engineers develop and design new products for customers.
3. Technical Support and Service:
Our engineer team will solve your technical problems within 48 hours.
4.Strict test process before ex-factory:
Every product will be tested twice before ex-factory, free load and under load, all products are 100% ex-factory pass rate.
5.Certification: ISO9001:2015, TUV etc.
Now Sunkings Electric Co., Ltd. Product line covers
1. Open type gensets.
2. Silent type gensets.
3. Trailer mounted gensets.
4. Containerized gensets.
5. Fuel tanks.
6. Industrial Silencers & other genset accessories.
|
|
