| Brand Name: | SHX |
| Model Number: | SCF550 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

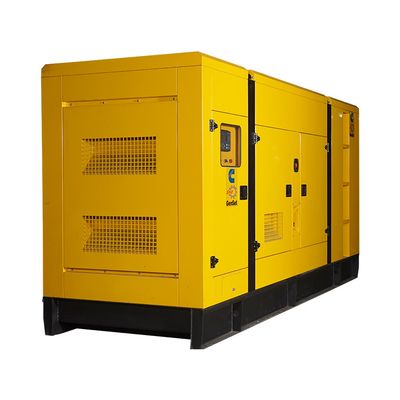

SHX 400kw Backup Diesel Generator 440kw 550kva Standby Cummins Power Generator
Features
| Genset Model | SCF550 |
| Prime Power | 400KW/500KVA |
| Standby Power | 440KW/550KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50Hz |
| Rated Current | 163A |
| Genset Structure | Silent type |
| Dimension | 4600×1600×2300mm |
| Net Weight | 4450KG |
| Noise level | 75dB at 7 meters |
| Fuel Tank Capacity | 8 hours |
| Engine Model | QSZ13-G3 |
| Engine Features | 6-cylinder, 4 stroke, water cooled, turbo |
| Bore * Stroke | 130mm × 163mm |
| Displacement | 13L |
| 12-hour Power(kw) | 4406KW/1500 |
| Fuel Consumption (g/kw.h) | 191 |
| Compression Ratio | 17:1 |
| Governor type | Electronic |
| Alternator Model | Farrand / FLD544D |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |
| Function | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers satisfaction at the manufacturer’s cost.
1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.
1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with all auxiliaries, instruments and controls for a complete test of the generator set.
Invitation to visit our factory
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou, and 35 minutes away from Canton fair.
3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
|
|
