| Brand Name: | SHX |
| Model Number: | SCF-550 |
| MOQ: | 1 set |
| Price: | USD 10000-30000/SET |
| Packaging Details: | Plyfilm or plywood |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |

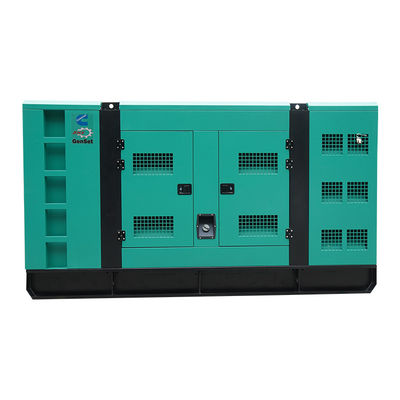

SHX 400kw Cummins Diesel Generator Set Low Noise Generator Soundproof Power Plant
Generator Specification:
1. Genuine Cummins industrial diesel engine
2. Radiator 50°C max, fans are driven by belt, with safety guard
3. Genuine stamford. Leroy somer, marathonm, engga alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
| Engine Model | QSZ13-G5 |
| Number of Cylinders | 6 cylinders in line |
| Cycle | 4 stroke |
| Air intake system |
Turbocharged & Charge Air Cooled
|
| Bore×Stroke | 130mm x163mm |
| Displacement | 13L |
| Compression ratio | 17:1 |
| Prime Power/Speed | 411KW / 1500rpm |
| Standby Power/Speed | 470KW / 1500rpm |
| Speed Governor | Electrical |
| Cooling System | Forced water cooling cycle |
| Steady speed droop | ≤1% |
| Total lubrication system capacity | 45.42L |
| Coolant capacity (engine only) | 23.1L |
| Fuel Consumption at 100% Load | 104.1L/h |
| Starter Motor | DC24V |
| Alternator | DC24V |
| Alternator Model | Stamford /Leroy Somer / Farrand |
| Prime power | 500KVA |
| Frequency/speed | 50HZ/1500rpm or 6Hz/1800rpm |
| Exciter type | Brushless |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±0.5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Phase | 3 |
| Model | DeepSea/SmartGen/ComAp |
|
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
DeepSea DSE6120, DSE7320, DSE8610, DSE8810 SmartGen HGM6110N, HGM6120N, HGM9510 ComAp MRS10, MRS16, IC-NT |
Super Soundproof/Silent Box
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Accessories
1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
|
|
