| Brand Name: | SHX |
| Model Number: | SCF413 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

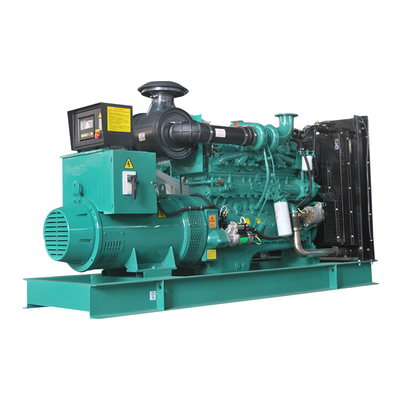

SHX 300kw Electric Diesel Generators 330kw 375kva Water Cooled Industrial Genset
Description of 375kva diesel generator set:
1. Power Rate: 375kva
2. Engine: CCEC Cummins engine
3. Alternator: Genuine Stamford, Farrand, Marathon, Leroy Somer, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.
5. ATS is optional
6. Type: Open type, Soundproof type, Trailer type, Container type, etc
Technical specification
| Genset model | SCF413 |
| Genset rated power | 300KW/375KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 540 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 3150×1150×1750 |
| Gross weight (kg) | 2800 |
| Diesel Engine | |
| Brand | CCEC Cummins |
| Model | NTA855-G4 |
| Engine type | 6 cylinders in line, 4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 14 |
| Bore×Stroke(mm) | 140×152 |
| Compression ratio | 14: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤189 |
| Lube capacity(L) | 36 |
| Alternator | |
| Brand | Farrand |
| Model | FLD444FS |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame. | |
Features
Introduction of Guangdong Sunkings Electric Co., Ltd.
Guangdong Sunkings Electric Co., Ltd has more than 15 years experience in manufacturing and maintenance of diesel generator sets. We mainly manufacture 25-2750KVA Cummins, Perkins, Weichai, Yuchai and Shangchai powered diesel gensets which are all made in China keeps the genset cost much lower than the US or EU or the Japan cost, since the design and all materials are same as original factories, the quality remains almost same as original factories.
|
|
