| Brand Name: | SHX |
| Model Number: | SCF413B |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

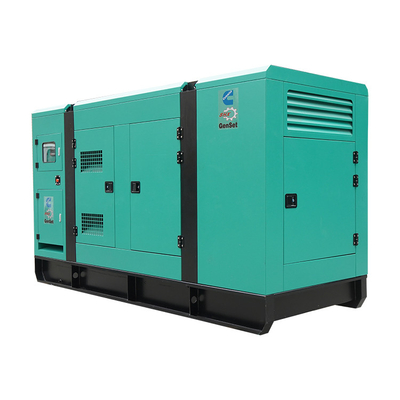

SHX 413kva Power Diesel Generator 300kw Backup Power Generator For Residential Use
Control Function
Key start / auto start
Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA; Genset KW; Output
Capacity; Output KW.H; Power Factor.
Warning/Shutdown: Alternator Under/Over Volts, Frequency; Under/Over Speed; Low Oil Pressure; High Engine Temp; High/Low Battery Volts; Over Current; Earth Fault Shutdown.
Voltage
1) Frequency at 50Hz: Available in 400/230Volts, 415/240Volts, 380/220Volts, 220/127Volts, and 200/115Volts.
2) Frequency at 60Hz: Available in 480/227Volts, 440/254Volts, 220/117Volts, and 208/120Volts.
| Specification of Diesel Generator Set 300KW | ||
| Generator Set | Model | SCF413B |
| Output Power | 3000kw / 375kva | |
| Frequency | 50Hz | |
| Voltage | 230/400V | |
| Dimension (L*W*H) | 4200*140*2100mm | |
| Weight | 3900Kg | |
| Diesel Engine | Engine Model | Cummins NTAA855-G7 |
| Speed | 1500RPM | |
| Bore*Stroke | 140*152mm | |
| Displacement | 14L | |
| Fuel Consumption | 201g/kw.h | |
| Alternator | Alternator Brand | Farrand |
| Alternator Model | FLD | |
| Controller | Brand | Smartgen |
| Model | HGN6110N | |
Options
| Engine | Alternator | Generator | Fuel System | Canopy |
|
Water Jacket Preheater Oil Preheater |
Winding Temperature Measuring Instrument Alternator Preheater PMG Anti-damp and anti-corrosion treatment Anti-condensation heater |
Toolkit with the machine |
Low fuel level alarm Automatic fuel feeding system Fuel T-valves |
Trailer Galvanized |
| Lubricating System | Exhaust System | Cooling System | Control System | Voltages |
| Oil with the machine | Protection board from hotness |
Front heat protection Coolant (-30°C) |
Remote control panel ATS |
415/240V 400/230V 380/220V |
Some Special Features :
Given below are some the special features of DG sets marketed by us.
· Compact, sleek, manual/automatic
· Sound proof and weather proof enclosure
· Confirms to statutory Government noise level norms
· Enclosure is of modular construction with provision to assemble and dismantle easily
· Fuel tank is provided with breather and drain plugs for filling and draining diesel from outside the enclosure
· Fuel level is indicated with the help of fuel gauge meter
· Drain plugs provided outside the enclosure for draining mobile oil
· Battery is provided in a tray inside the enclosure
· Doors have high quality gaskets to avoid leakage of sound
· Sound proofing of enclosure is done with high quality foam, which is further covered with fiberglass sheet and perforated powder coated sheet
· Specially designed sound attenuators are provided to control sound at air entry and exit points inside the enclosure
Understanding the customer’s requirement, delivering him the quality product and giving the dedicated service at reasonable and market competitive rates are our ultimate Mission. We constantly strive to keep our customers happy and fully satisfied.
|
|
