| Brand Name: | SHX |
| Model Number: | SHX-350 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

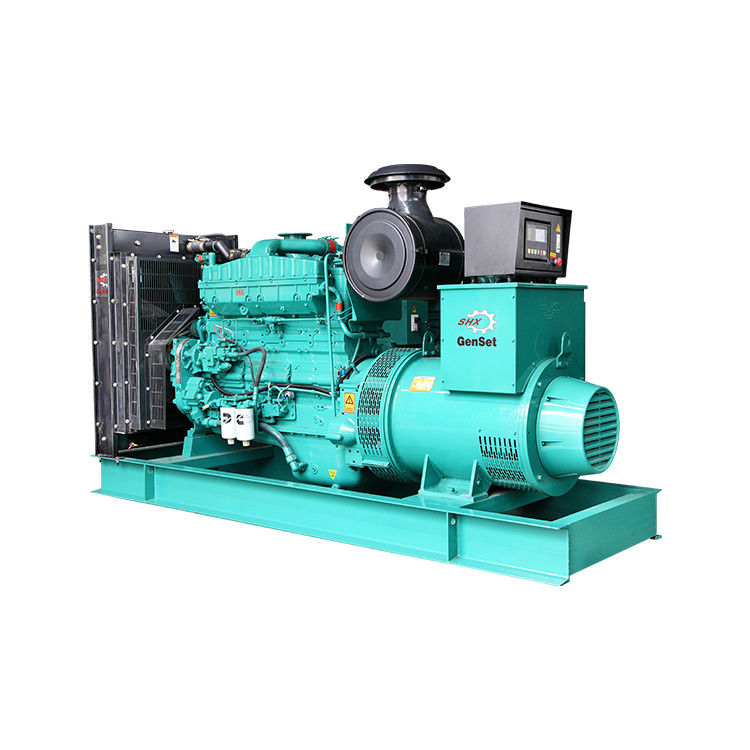

SHX 385kva Electric Diesel Generators 350kva Cummins Series Generator Power Generator Silent
Power Specifications
1) 1500RPM at 50Hz/1800RPM at 60Hz
2) Water Cooled
3) Turbocharged
Electrical Specifications
1) Power Factor: 0.8 Lagging
2) 3 Phase 4 Pole
3) Insulation: Class H
4) Brushless
5) Self-Excited
6) IP22 Protection
7) AVR regulation
8) Starting by Battery
Specification of 350kva Cummins series diesel generator
| Genset Model | SHX-350 |
| Prime Power | 280KW/350KVA |
| Standby Power | 308KW/385KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50Hz |
| Rated Current | 504A |
| Genset Structure | Open type |
| Dimension | 3000×1000×1750mm |
| Net Weight | 2800KG |
| Noise level | |
| Fuel Tank Capacity | |
| Engine Model | CCEC Cummins NTA855-G2A |
| Engine Features | 6-cylinder, 4 stroke, water cooled, turbo |
| Bore * Stroke | 140mm × 152mm |
| Displacement | 14L |
| 12-hour Power(kw) | 308KW/1500 |
| Fuel Consumption (g/kw.h) | 201 |
| Compression Ratio | 14:1 |
| Governor type | Electronic |
| Alternator Model | Farrand / FLD444E |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |
| Smartgen 6110 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
Standby Generator Set
Usually, the power required by the user is supplied by the mains, and the generator set sets up to ensure the basic production and life of the user is the standby genset when the mains is cut off or when the power supply is interrupted for other reasons.
This type of generator set is mainly located in the telecommunications sector, hospitals, and industrial and mining enterprises, airports, television stations and other major power generations.
This type of genset is kept in standby state at all times, providing a continuous supply of power to non-constant loads, with no restrictions on the duration of continuous operation.
Invitation to visit our factory
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou, and 35 minutes away from Canton fair.
3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
|
|
