| Brand Name: | SHX |
| Model Number: | SCF344 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

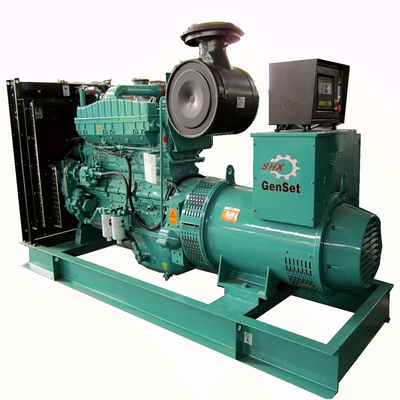

SHX 250kw Backup Diesel Generator 313kva Cummings Generator Portable Generator Set
Why choose us?
1.Sunkings is the first group of trade assurance suppliers, agree to abide product quality and delivery obligations.100% payment refund against delivery time.
2.Alibaba Assessed 4 years Gold Supplier.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipment.
5.Best Quality & Best Service with Competitive price.
Specification of 250kw diesel generator set
| Genset Model | SCF344 |
| Prime Power | 250KW/313KVA |
| Standby Power | 275KW/344KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50Hz |
| Rated Current | 450A |
| Genset Structure | Open frame |
| Dimension | 3000×1000×1750mm |
| Net Weight | 2700KG |
| Noise level | |
| Fuel Tank Capacity | |
| Engine Model | CCEC Cummins NTA855-G1B |
| Engine Features | 6-cylinder in line, 4 stroke, water cooled |
| Bore * Stroke | 140mm × 152mm |
| Displacement | 14L |
| 12-hour Power(kw) | 275KW/1500 |
| Fuel Consumption (g/kw.h) | 201 |
| Compression Ratio | 14:1 |
| Governor type | Electric |
| Alternator Model | Farrand / FLDK444D |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |
| Smartgen 6110 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
General features:
■ Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
■ 24V DC start motor;
■ Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;
■ Equipped with industrial silencer and flexible exhaust hose;
■ Designed to Comply with ISO8528/GB2820;
■ Powered by Perkins engine, Stamford alternator and DeepSea / ComAp / SmartGen control panel.
Continuous Generator
These generators operate year-round and are usually located in areas far away from the power grid or near industrial and mining enterprises to meet the needs of construction, production and domestic electricity.
At present, in the area with more developed economy, because the construction of electric power network is less than the power demand of users, the commonly used diesel generator set with short construction cycle is set up to meet the needs of users.
This type of generator has a relatively large capacity, provides continuous power supply for unsteady loads, has no limit on the duration of continuous operation, and allows one hour of over-load power supply for a period of 12 hours.
The overload capacity is 10% of the rated output power of diesel generator set. Because of its long running time and heavy load, the allowable power relative to the limit power of this unit is set to a lower point.
|
|
