| Brand Name: | SHX |
| Model Number: | SCF1650 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

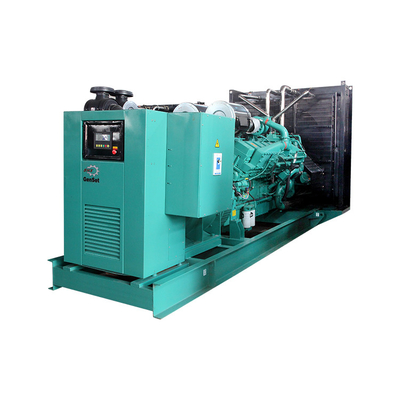

SHX 1650kva Electric Diesel Generators 1320kw Open Type Generator For Industrial Use
Description of 1650kva electric diesel generator:
1. Power Rating: 1650kva standby power
2. Engine: CCEC Cummins engine
3. Alternator: Genuine Stamford, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.
5. ATS is optional
6. Type: Open type, Soundproof type, Container type, etc
7. Color: Can be customized
Technical speicifcation
| Genset Model | SCF1650 |
| Prime Power | 1200KW/1500KVA |
| Standby Power | 1320KW/1650KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50Hz |
| Rated Current | 2160A |
| Genset Structure | Open type |
| Dimension | 5800×2100×2500mm |
| Net Weight | 12000KG |
| Noise level | |
| Fuel Tank Capacity | |
| Engine Model | CCEC Cummins KTA50-GS8 |
| Engine Features | 16-cylinder in vee, 4 stroke, water cooled |
| Bore * Stroke | 159mm × 159mm |
| Displacement | 50.3L |
| 12-hour Power(kw) | 1320KW/1500 |
| Fuel Consumption (g/kw.h) | 204 |
| Compression Ratio | 14.9:1 |
| Governor type | ELECTIC |
| Alternator Model | Farrand / FLD734B |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |
| Smartgen HGM6110 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
Standby Generator Set
Usually, the power required by the user is supplied by the mains, and the generator set sets up to ensure the basic production and life of the user is the standby genset when the mains is cut off or when the power supply is interrupted for other reasons.
This type of generator set is mainly located in the telecommunications sector, hospitals, and industrial and mining enterprises, airports, television stations and other major power generations.
This type of genset is kept in standby state at all times, providing a continuous supply of power to non-constant loads, with no restrictions on the duration of continuous operation.
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Our company attaches great importance to after-sales service, the user to establish a computer archive, tracking services, regular inspection services.
For each category generator provided in our company, all could enjoy 12 months or 1000 working hours maintenance.
For helping customers master the operation,we in particular provide free site and training courses of different types of generators.
