| Brand Name: | SHX |
| Model Number: | SHX-500 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

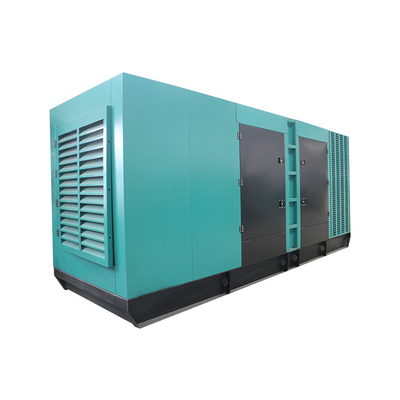

SHX 550kw Backup Diesel Generator 688kva High Power Generator Silent Electric Generator
Electrical Parameters
Wave distortion: <10%
Voltage fluctuation: <0.5%
Voltage / frequency fluctuation: <=0.5%
AVR self-regulated, voltage regulation rate: <=+- 1%
Radio interference restraining accords with stipulation of VDE0875-N and ISO8528
Control Function
Key start / auto start
Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA; Genset KW; Output
Capacity; Output KW.H; Power Factor.
Warning/Shutdown: Alternator Under/Over Volts, Frequency; Under/Over Speed; Low Oil Pressure; High Engine Temp; High/Low Battery Volts; Over Current; Earth Fault Shutdown.
Specification of 550kw backup diesel generator
| Genset Model | PF-DC125S |
| Prime Power | 500KW/625KVA |
| Standby Power | 550KW/688KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50Hz |
| Rated Current | 900A |
| Genset Structure | Silent type |
| Dimension | 4700×18000×2300mm |
| Net Weight | 5500KG |
| Noise level | 75dB at 7 meters |
| Fuel Tank Capacity | 8 hours base fuel tank |
| Engine Model | CCEC Cummins |
| Engine Features | 6-cylinder in line, 4 stroke, water cooled |
| Bore * Stroke | 159mm × 159mm |
| Displacement | 19L |
| 12-hour Power(kw) | 550KW/1500 |
| Fuel Consumption (g/kw.h) | 206 |
| Compression Ratio | 13:1 |
| Governor type | Electronic |
| Alternator Model | Farrand / FLD544FS |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |
| Smartgen 6110 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
Advantages:
1.Reliable Performance:
Reliable performance is the major advantage of SHX products, which is based on the outstanding design in every aspect and strict QC system.
2.Customer First:
We devote ourselves to develop products to meet customer’s requirements. Our engineers develop and design new products for customers.
3. Technical Support and Service:
Our engineer team will solve your technical problems within 48 hours.
4.Strict test process before ex-factory:
Every product will be tested twice before ex-factory, free load and under load, all products are 100% ex-factory pass rate.
5.Certification: ISO9001:2015, TUV etc.
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.
|
|
