| Brand Name: | SHX |
| Model Number: | SSF825 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

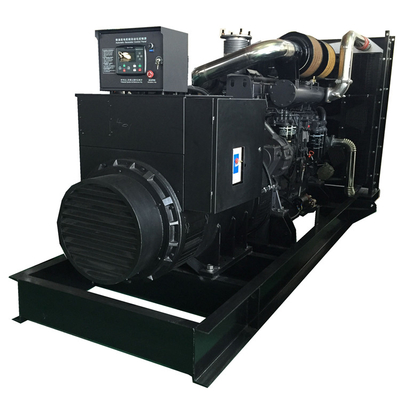

SHX 600kw Electric Diesel Generators 750kva SDEC Engine Powered 1500RPM Generator Set
Electrical Parameters
Wave distortion: <10%
Voltage fluctuation: <0.5%
Voltage / frequency fluctuation: <=0.5%
AVR self-regulated, voltage regulation rate: <=+- 1%
Radio interference restraining accords with stipulation of VDE0875-N and ISO8528
Control Function
Key start / auto start
Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA; Genset KW; Output
Capacity; Output KW.H; Power Factor.
Warning/Shutdown: Alternator Under/Over Volts, Frequency; Under/Over Speed; Low Oil Pressure; High Engine Temp; High/Low Battery Volts; Over Current; Earth Fault Shutdown.
| Specification of Diesel Generator Set 600KW | ||
| Generator Set | Model | SSF825 |
| Output Power | 600kw / 750kva | |
| Frequency | 50Hz | |
| Voltage | 230/400V | |
| Dimension (L*W*H) | 4500*1800*2300mm | |
| Weight | 6000 Kg | |
| Diesel Engine | Engine Model | SDEC SC33W990D2 |
| Speed | 1500RPM | |
| Bore*Stroke | 180*215mm | |
| Displacement | 32.8 L | |
| Fuel Consumption | 205 g/kw.h | |
| Alternator | Alternator Brand | Farrand |
| Alternator Model | FLD634B | |
| Controller | Brand | Smartgen |
| Model | HGN6110N | |
INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers satisfaction at the manufacturer’s cost.
1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.
1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with all auxiliaries, instruments and controls for a complete test of the generator set.
OEM Service:
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to customer’s requirement.
4. Full warranty cover to support the customers
|
|
