| Brand Name: | SHX |
| Model Number: | SCS440 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |
SHX 320kw Electric Diesel Generators Cummins 400kva Silent Generator Set For Factory Use
Product Advantages
1) Low exhaust gas
2) Independent fuel direct gush-oil system
3) Low fuel consumption
4) Steady performance
5) Good power-weight ratio
6) Small, compact structure, beautiful appearance
7) Easy to facilitate installation, easy to maintenance

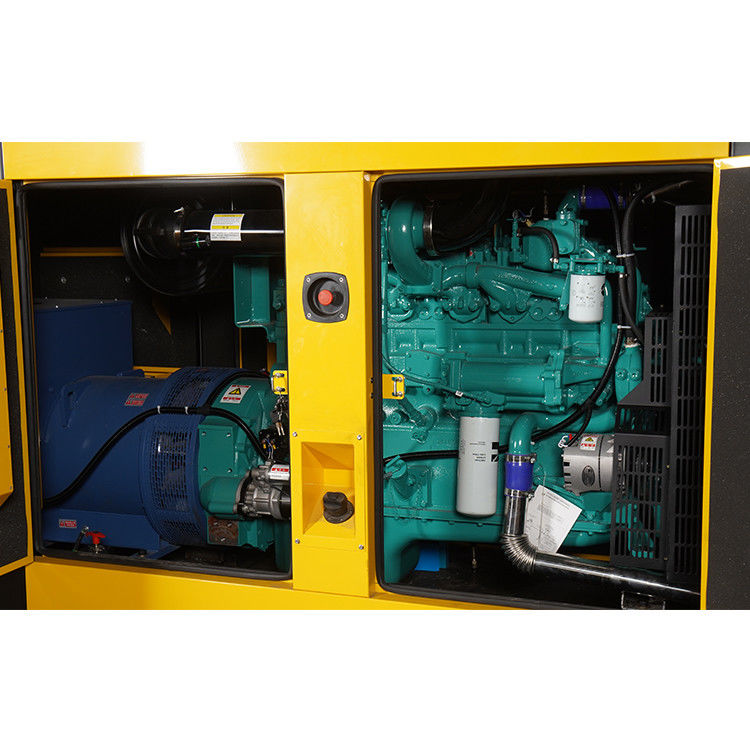

Technical specifications of Cummins 400kva silent generator set
| Genset model | SCS440 |
| Genset rated power | 320KW/400KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 576A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 4600×16000×2300 |
| Gross weight (kg) | 4000 |
| Diesel Engine | |
| Brand | DCEC Cummins |
| Model | 6ZTAA13-G2 |
| Engine type | 6 cylinders in line, 4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Fuel system | Electronic controlled injection |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 13 |
| Bore×Stroke (mm) | 130×163 |
| Compression ratio | 17: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤192 |
| Lube capacity (L) | 45.42 |
| Alternator | |
| Brand | Stamford |
| Model | HCI444F |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame. | |
Why choose Cummins powered gensets?
1. Cummins engines which are made in China with the same standard of the US Cummins keep the quality almost the same as the US Cummins.
2. More than 90% of the Engines components and spares are made in China which keeps the cost much lower.
3. Cummins engines are universally just as Cummins factories all around the world; all the spares are universal which make the maintenance and reparation very simple.
4. Cummins has worldwide after-sales network, to whom you can get technical support and spares right near your house.
5. Engineers are more familiar with Cummins engines because they are most widely use in every filed and everywhere around the world.
Introduction of Guangdong Sunkings Electric Co., Ltd.
Guangdong Sunkings Electric Co., Ltd has more than 15 years experience in manufacturing and maintenance of diesel generator sets. We mainly manufacture 25-2750KVA Cummins, Perkins, Weichai, Yuchai and Shangchai powered diesel gensets which are all made in China keeps the genset cost much lower than the US or EU or the Japan cost, since the design and all materials are same as original factories, the quality remains almost same as original factories.
Invitation to visit our factory
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou, and 35 minutes away from Canton fair.
3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
|
|
