| Brand Name: | SHX |
| Model Number: | SCF825 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

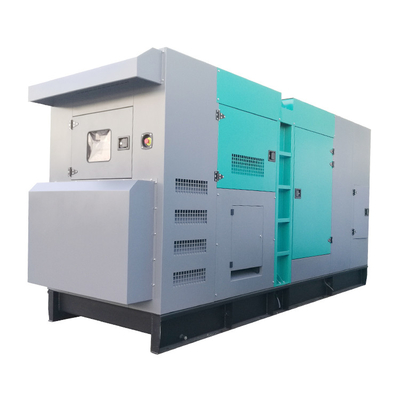

SHX Power Diesel Generator 600kw 750kva Cummins Genset Soundproof Generator
Description of 750kva Cummins genset:
1. Power Range: 750kva prime power
2. Engine: Original Cummins engine
3. Alternator: Genuine Stamford, Leory Somer, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.
5. ATS is optional
6. Type: Open type, Soundproof type, Container type, etc
7. Color: Can be customized
Technical specification
| Genset model | SCF825 |
| Genset rated power | 600KW/750KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 1080A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 5950×2000×2500 |
| Gross weight (kg) | 8500 |
| Diesel Engine | |
| Brand | Cummins |
| Model | KT38-GA |
| Engine type | 12 cylinders in vee, 4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled with radiator |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 38 |
| Bore×Stroke (mm) | 159×159 |
| Compression ratio | 13.9: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤230.5 |
| Lube capacity (L) | 113.6 |
| Alternator | |
| Brand | Farrand |
| Model | FLD634B |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame. | |
Supply Scope of soundproof generator
1.Standard tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
2.Brand-new engine, with start motor.
3.Brand new brushless alternator, single bearing, flange connection, IP21-23, H insulation class, with AVR.
4.Auto control panel, with LCD display.
5.Engine mounted battery-charging alternator.
5.Circuit Breaker, Exhaust Silencer
6.Radiator for 40°C ambient temperature and double-deck cooling, with fan guard and front guard.
7.Anti-vibration pads are fixed between engine/alternator and base frame, as to ensure the compete genset running under stabilization.
8.Skid-mounted bottom Fuel tank - 8hrs continuous running for choice (bigger fuel tank by your demand under extra cost)
9.External recessed emergency stop button for extra safety
10.The colors & Brands by your requests
11.Optional choice: ATS (automatic transfer switch), battery charger of mains supply, fuel-water separator, water heater and oil heater ( depends on using environment),fuel filter, oil filter, water filter and air filter, Parallel system for your choice.
Advantages of Diesel Generator Set Powered by Cummins Engine:
1. International Warranty Service
2. With ISO9001&CE certification
3. Spare parts are easy to get from worldwide market with much cheaper price
4. Coupled with Stamford alternator, Leroy Somer alternator or Chinese Farrand alternator
5. Perfect after-service network
6. Both 50Hz and 60Hz
7. Rigorous test including 50% load,75% load,100% load and 110% load
8. Short delivery time
|
|
