| Brand Name: | SHX |
| Model Number: | SPL1100 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |
SHX 1000kva Perkins Diesel Generator Set 800kw 3P Water Cooled Standby Generator Set
Advantages of 1000kva Perkins diesel generator set
1) Low exhaust gas
2) Independent fuel direct gush-oil system
3) Low fuel consumption
4) Steady performance
5) Good power-weight ratio
6) Small, compact structure, beautiful appearance
7) Easy to facilitate installation, easy to maintenance
Technical specifications of 1000kva Perkins diesel generator set
| Genset model | SCL1100 |
| Genset rated power | 800KW/1000KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 1440A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 6058*2438*2591 |
| Gross weight (kg) | 12000 |
| Diesel Engine | |
| Brand | Perkins |
| Model | 4008TAG2A |
| Engine type | 8 cylinders in line, 4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 30.56 |
| Bore×Stroke (mm) | 160×190 |
| Compression ratio | 13.6: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤214 |
| Lube capacity (L) | 153 |
| Alternator | |
| Brand | Leroy Somer |
| Model | LSA49.3L10 |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame. | |
Why choose us?
1.Sunkings is the first group of trade assurance suppliers, agree to abide product quality and delivery obligations.100% payment refund against delivery time.
2.Alibaba Assessed 4 years Gold Supplier.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipment.
5.Best Quality & Best Service with Competitive price.

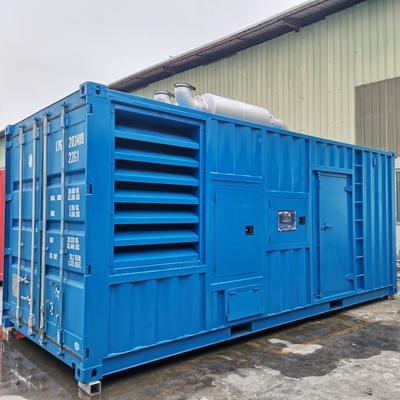

Containerized Generator Set Features
Containerized generator set integrates the generator with container of a compact
structure, including the cooling system, fuel supply system and control system,
which can be carried by vehicles. The dimension of containerized generator station
is the same with standard containers (20ft, 40ft, and 40ft HC), there are two
types: step-in containerized generator station with operating room, maintenance
room and duty room; non-step-in is compactly design.
Parallel Control Panel
Parallel control panel enables two or more generator sets, or generator sets and the mains parallel to supply electricity to loads. Parallel control panel box is GGD structure which has manual, semi-auto and auto control.
Manual parallel control panel: Operator analyzes and makes parallel work signal basing on the indicator in the parallel control panel box to parallel generator sets.
With parallel control panel, power supply can be flexible controlled according to power needs.
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.
|
|
