| Brand Name: | SHX |
| Model Number: | SCS990 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |
SHX Electric Diesel Generators 900kva Mtu Generator 720kw Emergency Generator Set
Advantages of Diesel Generator Powered by Cummins Engine:
1. International Warranty Service
2. With ISO9001&CE certification
3. Spare parts are easy to get from worldwide market with much cheaper price
4. Coupled with Stamford alternator, Leroy Somer alternator or Chinese Farrand alternator
5. Perfect after-service network
6. Both 50Hz and 60Hz
7. Rigorous test including 50% load,75% load,100% load and 110% load
8. Short delivery time
Technical specifications of 720kw emergency generator set
| Genset model | SCS990 |
| Genset rated power | 720KW/9000KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 1296A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with radiator |
| Overall dimension (L×W×H) mm | 5800×2280×2500 |
| Gross weight (kg) | 10000 |
| Diesel Engine | |
| Brand | CCEC Cummins |
| Model | KTA38-G2A |
| Engine type | 12 cylinders in vee, 4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 50 |
| Bore×Stroke (mm) | 159×159 |
| Compression ratio | 14.5: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤202 |
| Lube capacity (L) | 114 |
| Alternator | |
| Brand | Stamford |
| Model | LVI634D |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame. | |

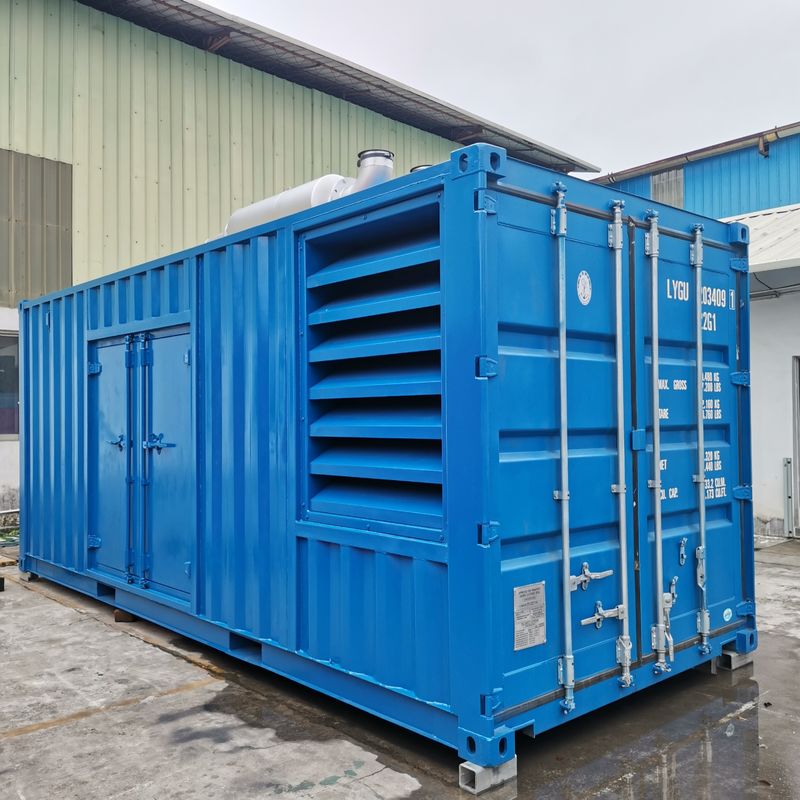

Supply Scope of container generator
1.Standard tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
2.Brand-new engine, with start motor.
3.Brand new brushless alternator, single bearing, flange connection, IP21-23, H insulation class, with AVR.
4.Auto control panel, with LCD display.
5.Engine mounted battery-charging alternator.
5.Circuit Breaker, Exhaust Silencer
6.Radiator for 40°C ambient temperature and double-deck cooling, with fan guard and front guard.
7.Anti-vibration pads are fixed between engine/alternator and base frame, as to ensure the compete genset running under stabilization.
8.Skid-mounted bottom Fuel tank - 8hrs continuous running for choice (bigger fuel tank by your demand under extra cost)
9.External recessed emergency stop button for extra safety
10.The colors & Brands by your requests
11.Optional choice: ATS (automatic transfer switch), battery charger of mains supply, fuel-water separator, water heater and oil heater ( depends on using environment),fuel filter, oil filter, water filter and air filter, Parallel system for your choice.
INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers satisfaction at the manufacturer’s cost.
1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.
1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with all auxiliaries, instruments and controls for a complete test of the generator set.
|
|
