| Brand Name: | SHX |
| Model Number: | SHX600 |
| MOQ: | 1 set |
| Price: | usd 1-150000 one set |
| Packaging Details: | pack by Plyfilm |
| Payment Terms: | L/C, T/T, Western Union |

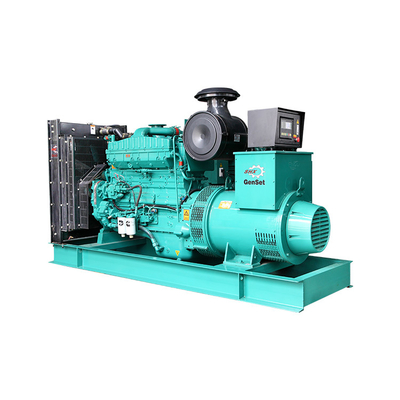

600kva Cummins Electric power Standby Diesel Generator with 100% copper alternator
Genset specification
| MODEL | SHX600 |
| Prime Power (50Hz) | 600kva |
| Standby Power (50Hz) | 660kva |
| Engine Data | |
| Manufacturer / Model | Genset with KTAA19G6A |
| Air Intake System: | Turbo |
| Fuel System: | A/AD Type fuel pump |
| Cylinder Arrangement: | 6in-line |
| Displacement: | 18.9L |
| Rated RPM: | 1500 rpm |
| Governor Type: | RSV Mechanical (std) / Electronic (optional) |
| Exhaust System | |
| Exhaust Gas Flow: | 16.8m³/min |
| Exhaust Temperature: | 565°C |
| Max Back Pressure: | 10Kpa |
| Air Intake System: | |
| Max Intake Restriction: | 6.35kPa |
| Burning Capacity: | 6.48m³/min |
| Air Flow: | 158m³/min |
| Fuel System | |
| 100% (Prime Power) load: | 128L/H |
| Oil System | |
| Total Oil Capacity: | 16.4L |
| Oil Consumption: | ≤4g/Kw.h |
| Engine Oil Tank Capacity: | 14.3L |
| Oil Pressure at Rated RPM: | 345kPa |
| Cooling System | |
| Total Coolant Capacity: | 27L |
| Thermostat: | 82-95°C |
| Max Water Temperature: | 104°C |
| Alternator Data | |
| Alternator Model: | Stamford,MECC,Leroy-Somer |
| Alternator Capacity: | 660Kva |
| Conecting Type: | 3phase,4 wires |
| Power Factor | 0.8 |
| Protection Grade: | IP23 |
| Altitude: | ≤1000m |
| Exciter Type: | Brushless, self-exciting |
| Insulation Class, Temperature Rise: | H/H |
| Telephone influence factor (TIF): | <50 |
| THF: | <2% |
| Voltage Regulation, Steady State: | ≤±1% |
| Alternator Efficiencies: | 90.30% |
| Air Cooling Flow: | 0.216m³/S |
• Compact structure high-strength chassis
• Easy operation and maintenance, Low cost
• Good performance damping system
• Compliance with international electrical safety standards of electrical system
• High-performance maintenance-free batteries with isolation switch
• 50℃ radiator
• Forklift bottom hole design, easy to transport
• Industrial type muffler
• Noise reduction structure,Low overall noise
• Convenient power output interface and ATS Interface
Guangdong Sunkings Electric Co., Ltd is a leading generator factory that designs, manufactures and distributes marine diesel generator, industry diesel generator we can provides diesel generators for different applications such as offshore platform, data center, telecom, oil filed, outdoor projects. power plants, all kinds of ships and all kinds of buildings. Vlais marine diesel generators with International Association of Classification
|
|
