| Brand Name: | SHX |
| Model Number: | SCL1375 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

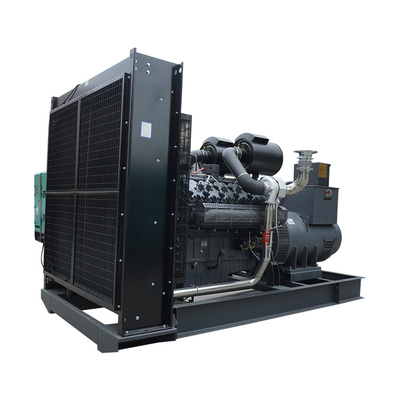

SHX 1250kva Power Diesel Generator 1mw Diesel Generator Stationary Type Generator Set
Standard Configuration of 1250kva power diesel generator:
1) Cummins engine
2) Leroy Somer alternator (Marathon, Stamford brand for option)
3) Smartgen HGM6110 control panel (Deepsea DSE6120 for option)
4) Delixi MCCB circuit breaker
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery, battery charger and battery isolator switch
8) Industrial silencer and flexible exhaust hose
Technical Speicifcations
| Genset model | SCL1375 |
| Genset rated power | 1000KW/1250KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 1800A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 5800×2280×2500 |
| Gross weight (kg) | 11040 |
| Diesel Engine | |
| Brand | CCEC Cummins |
| Model | KTA50-G3 |
| Engine type | 16 cylinders in vee, 4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 50 |
| Bore×Stroke (mm) | 159×159 |
| Compression ratio | 13.9: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤199 |
| Lube capacity (L) | 151 |
| Alternator | |
| Brand | Leroy Somer |
| Model | LSA50.2M6 |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame. | |
Why choose us?
1.Sunkings is the first group of trade assurance suppliers, agree to abide product quality and delivery obligations.100% payment refund against delivery time.
2.Alibaba Assessed 4 years Gold Supplier.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipment.
5.Best Quality & Best Service with Competitive price.
Product Advantages
1) Low exhaust gas
2) Independent fuel direct gush-oil system
3) Low fuel consumption
4) Steady performance
5) Good power-weight ratio
6) Small, compact structure, beautiful appearance
7) Easy to facilitate installation, easy to maintenance
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.
|
|
