| Brand Name: | SHX |
| Model Number: | SWF550 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

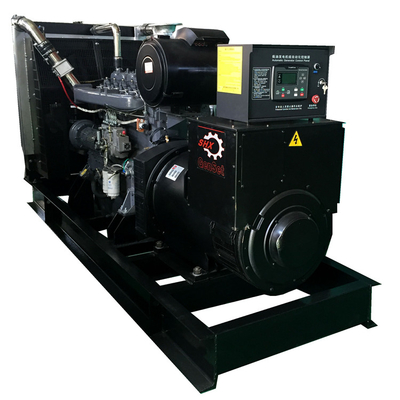

SHX 500kva Electric Diesel Generators 400kw Weichai Diesel Generator 1500RPM Genset
Power Specifications
1) 1500RPM at 50Hz
2) Water Cooled
3) Turbocharged
Electrical Specifications
1) Power Factor: 0.8 Lagging
2) 3 Phase 4 Pole
3) Insulation: Class H
4) Brushless
5) Self-Exited
6) IP22 Protection
7) AVR regulation
8) Starting by Battery
| Specification of Diesel Generator Set 400KW | ||
| Generator Set | Model | SWF550 |
| Output Power | 400kw / 500kva | |
| Frequency | 50Hz | |
| Voltage | 230/400V | |
| Dimension (L*W*H) | 3200*1000*1750mm | |
| Weight | 3500Kg | |
| Diesel Engine | Engine Model | Weichai WP13D490E310 |
| Speed | 1500RPM | |
| Bore*Stroke | 127*165mm | |
| Displacement | 12.54L | |
| Fuel Consumption | 205g/kw.h | |
| Alternator | Alternator Brand | Farrand |
| Alternator Model | FLD544D | |
| Controller | Brand | Smartgen |
| Model | HGN6110N | |
Scope of supply
1. DIESEL ENGINE
1.1 Engine which includes wet type cylinder, direct injection combustion chamber, exhaust turbocharger, water cooling, electronic governor, etc.
1.2 Fuel system, which includes, fuel pump, strainers or filters, etc.
1.3 Air intake and exhaust system, which includes air filter, exhaust silencer, bellow, all intake and exhaust piping, cablings, instruments, valves and settings, etc.
1.4 Cooling system, which includes radiator with water level alarm and indicator, thermostatic switch, thermostatic heater, engine shaft mounted fan, all interconnecting piping, cablings, instruments, valves and settings, etc.
1.5 Lubricating system includes pumps, oil sumps, oil strainers and filters, all interconnecting piping, instruments, valves and settings, etc.
1.6 Starting system, which includes 2 sets of batteries, a set of AC charger, and interconnecting piping, cablings, instrument, valves and settings, etc.
2. AC SYNCHRONOUS GENERATOR
2.1 Generator, which includes exciter, rectifier, AVR, shaft mounted fan if required.
2.2 All interconnecting piping, cablings, instruments, valves and settings, etc.
3. COUPLINGS AND GUARD
3.1 Coupling
3.2 Coupling Guard
4. CONTROL PANEL
4.1 Local automatic control panel
5. BASEPLATE
5.1 Common base plate
6. DOCUMENTS
6.1 Generator Set Installation Manual
6.2 Generator Set Operation and Maintenance Manual
6.3 Generator Set Control Panel Manual
6.4 Engine Manual and Quality File
6.5 Alternator Manual and Quality File
6.6 Factory Acceptant Test Report
6.7 Relative Drawings and Diagrams
Options
| Engine | Alternator | Generator | Fuel System | Canopy |
|
Water Jacket Preheater Oil Preheater |
Winding Temperature Measuring Instrument Alternator Preheater PMG Anti-damp and anti-corrosion treatment Anti-condensation heater |
Toolkit with the machine |
Low fuel level alarm Automatic fuel feeding system Fuel T-valves |
Trailer Galvanized |
| Lubricating System | Exhaust System | Cooling System | Control System | Voltages |
| Oil with the machine | Protection board from hotness |
Front heat protection Coolant (-30°C) |
Remote control panel ATS |
415/240V 400/230V 380/220V |
OEM Service:
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to customer’s requirement.
4. Full warranty cover to support the customers.
|
|
