| Brand Name: | SHX |
| Model Number: | SHX-1250 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

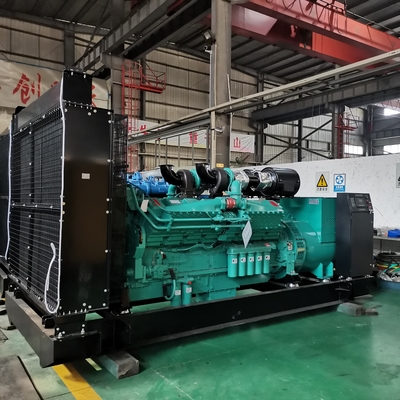

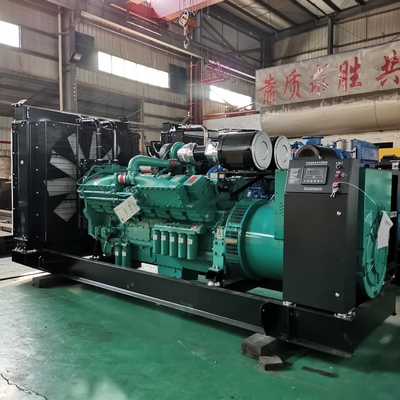

1000kw Diesel Generator 1 Megawatt Genset 1 Mw Diesel Generator Set
Why choose Cummins powered gensets?
1. Cummins engines which are made in China with the same standard of the US Cummins keep the quality
almost the same as the US Cummins.
2. More than 90% of the Engines components and spares are made in China which keeps the cost much lower.
3. Cummins engines are universally just as Cummins factories all around the world; all the spares are universal
which make the maintenance and reparation very simple.
4. Cummins has worldwide after-sales network, to whom you can get technical support and spares right near
your house.
5. Engineers are more familiar with Cummins engines because they are most widely use in every filed and
everywhere around the world.
Features
1) Universal design and manufacture
2) Most widely used around the world
3) With most service terminals
4) Engineers are familiar with Cummins powered gensets
5) You could find spare-parts very easy
Speicifcations
| Genset Model | SHX-1250 |
| Prime Power | 1000KW/1250KVA |
| Standby Power | 1100KW/1375KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50Hz |
| Rated Current | 1804A |
| Genset Structure | Open type |
| Dimension (L*W*H) | 5800×2280×2500mm |
| Weight | 11000KG |
| Engine brand | Cummins |
| Engine Model | KTA50-G3 |
| Engine Features | 16-cylinder in vee, 4 stroke, water cooled, turbocharged |
| Bore*Stroke | 159×159mm |
| Displacement | 50.3L |
| 12-hour Power | 1097KW |
| Fuel Consumption | 199g/kw.h |
| Compression Ratio | 13.9:1 |
| Speed governing | Electrical |
|
Alternator Model |
Farrand FLD634G |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |
| Smartgen HGM6110N |
Intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator.
|
INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption
in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser
in advance of the test date notification.
1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected
shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers
satisfaction at the manufacturer’s cost.
1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.
1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with all auxiliaries,
instruments and controls for a complete test of the generator set.
Invitation to visit our factory
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou,
and 35 minutes away from Canton fair.
3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
|
|
