| Brand Name: | SHX |
| Model Number: | SHX-688 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

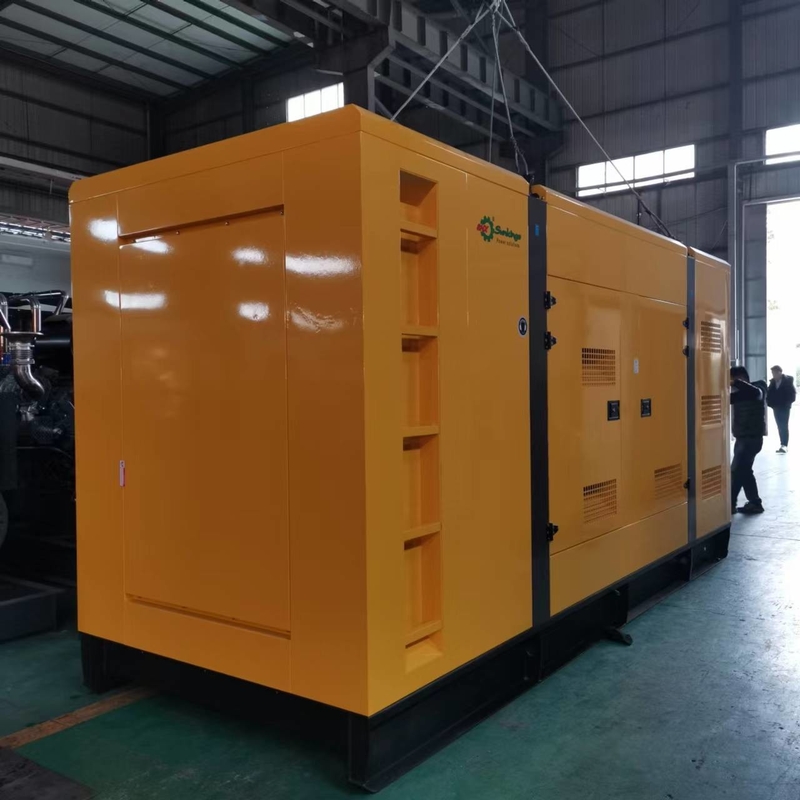

500kw Standby Diesel Generator Soundproof 625kva Diesel Generator For Back-Up Power
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
Genset Specifications
| Genset model | SHX-688 |
| Genset rated power | 500KW / 625KVA |
| Rated voltage | 230V / 400V (adjustable) |
| Rated current | 902 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 4800×1800×2450 |
| Weight (kg) | 5500 |
Engine Specifications
| Diesel Engine | |
| Brand | CCEC Cummins |
| Model | KTAA19-G6A |
| Engine structure | 6 cylinders vertical in line, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 19 |
| Bore×Stroke(mm) | 159×159 |
| Compression ratio | 13.0: 1 |
| 100% Load fuel consumption (litre/h) | 134.9 |
| Lube capacity(L) | 38 |
Alternator Specifications
| Alternator | |
| Brand | Farrand |
| Model | FLD544FS |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |

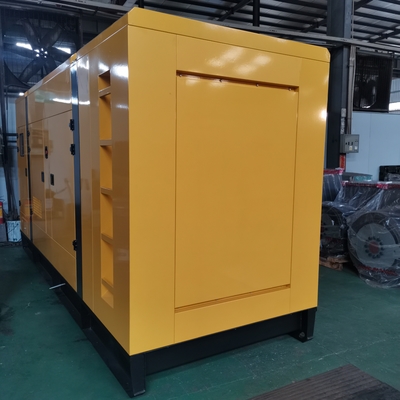

SHX Soundproof Generator Set Features:
A new kind of acoustic material is used as pugging, noise reducing return-flow wind tunnel is used as generator
set's ventilation system, and louver is installed in the window to prevent rains and other intruders. High efficiency
silencer with double level structure and another silencer between two levels keep the noise at the lowest level.
The box is modular structure with indicator and maintenance doors which make installation, operation and maintenance
very convenient. Benefited from the special design, medium low noise diesel generator set's noise can be as low as
75dB (A) (at LP7m). Fuel tank can be installed on it according to customer needs.
OEM Service:
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to customer’s requirement.
4. Full warranty cover to support the customers.
|
