| Brand Name: | SHX |
| Model Number: | SCF-2500 |
| MOQ: | 1 SET |
| Price: | USD 120000-300000/SET |
| Packaging Details: | Plyfilm or plywood |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |

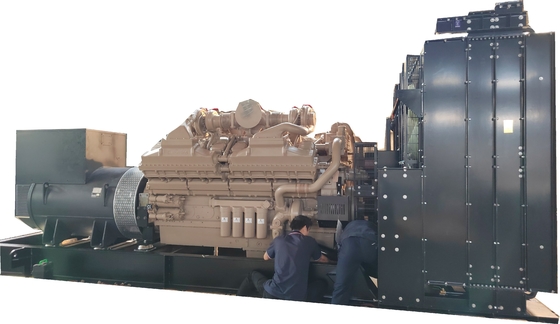

2500kva Cummins Diesel Generator Set Container Silent Type UK Engine
| Genset Technical Data | |
| Genset Model | SHX-2500 |
| Rated Voltage | 380/220V(Can be adjusted) |
| Rated Frequency | 50HZ |
| P.F(COS) | 0.8 |
| Prime Power | 1800KW/2250KVA |
| Standby Power | 2000KW/2500KVA |
| Cummins Engine Data | |
| Engine Model | 4016-61TRG3 |
| Number of Cylinders | 16 cylinders 60° Vee |
| Aspiration | Quad turbocharged,air to water charge cooled |
| Bore×Stroke | 160mm x190mm |
| Displacement | 61.123L |
| Compression ratio | 13:1 |
| Prime Power/Speed | 1975KW / 1800RPM |
| Standby Power/Speed | 2183KW / 1800RPM |
| Speed Governor | ECM |
| Cooling System | Forced water cooling cycle |
| Fuel Consumption at 100% Load | 205g/kwh@1800rpm |
| Alternator Data | |
| Optional brands | Stamford/Leroy Somer/Marathon |
| Prime power | 1800KW/2250KVA |
| Frequency/speed | 60Hz/1800rpm |
| Exciter type | Single bearing, Brushless, Self-excited with AVR |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±1% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Control Panel | |
| Optional brands | Deespea/Smartgen/ComAp |
Our production capacity amounts to 9000 sets per year. We are specialized in making 10kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA... Our gensets mainly use DEEPSEA and SMARTGEN control panel.
According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.
Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
|
