| Brand Name: | SHX |
| Model Number: | SHX-2250 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

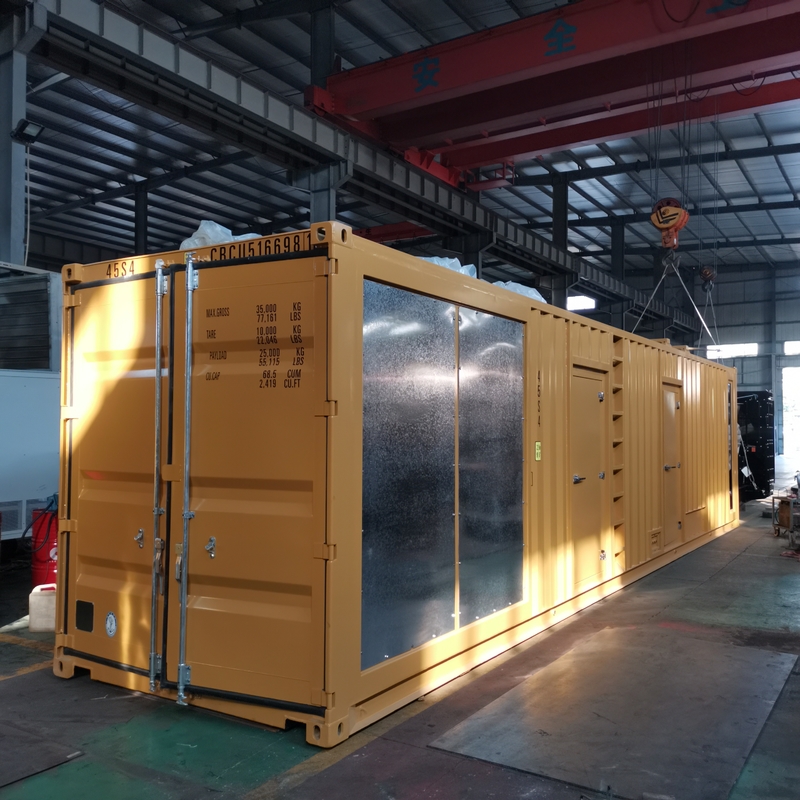

2250kva Container Diesel Generator With Cummins Engine 1800kw Soundproof Generator
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
Genset Specifications
| Genset model | SHX-2250 |
| Genset rated power | 1800KW / 2250KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 3248 Amp |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 12200×2440×2900 |
| Weight (kg) | 25000 |

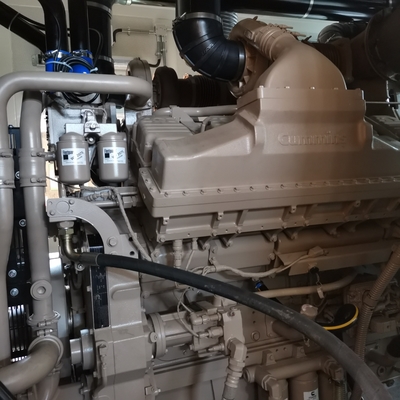

Engine Specifications
| Diesel Engine | |
| Brand | Cummins |
| Model | QSK60-G8 |
| Engine structure |
4-Cycle; 60° Vee; 16-Cylinder Diesel
|
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled with radiator |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 60.2 |
| Bore×Stroke (mm) | 159×190 |
| Compression ratio | 14.5: 1 |
| 100% Load fuel consumption (litre/h) | ≤500 |
| Lube capacity (L) | 176 |
Alternator Specifications
| Alternator | |
| Brand | Leroy Somer |
| Model | LSA52.3L9 |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Emergency Generator Set
For the use of electrical equipment that will cause large losses or personal accidents when the mains supply is
suddenly interrupted, emergency generator sets are often provided to supply power to these equipment,
such as fire protection systems for high-rise buildings, evacuation lighting, elevators, and control systems for
automated production lines.
Such important communication systems and medical equipment that is undergoing important surgery for patients
can quickly start up when the mains supply is suddenly interrupted,
and provide stable AC power to the load in a short time to ensure timely delivery. Load power supply, this unit
requires a high degree of automation.
Advantages of Diesel Generator Set Powered by Cummins Engine:
1. International Warranty Service
2. With ISO9001&CE certification
3. Spare parts are easy to get from worldwide market with much cheaper price
4. Coupled with Stamford alternator, Leroy Somer alternator or Chinese Farrand alternator
5. Perfect after-service network
6. Both 50Hz and 60Hz
7. Rigorous test including 50% load,75% load,100% load and 110% load
8. Short delivery time
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.
|
