| Brand Name: | SHX |
| Model Number: | SHX-600 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

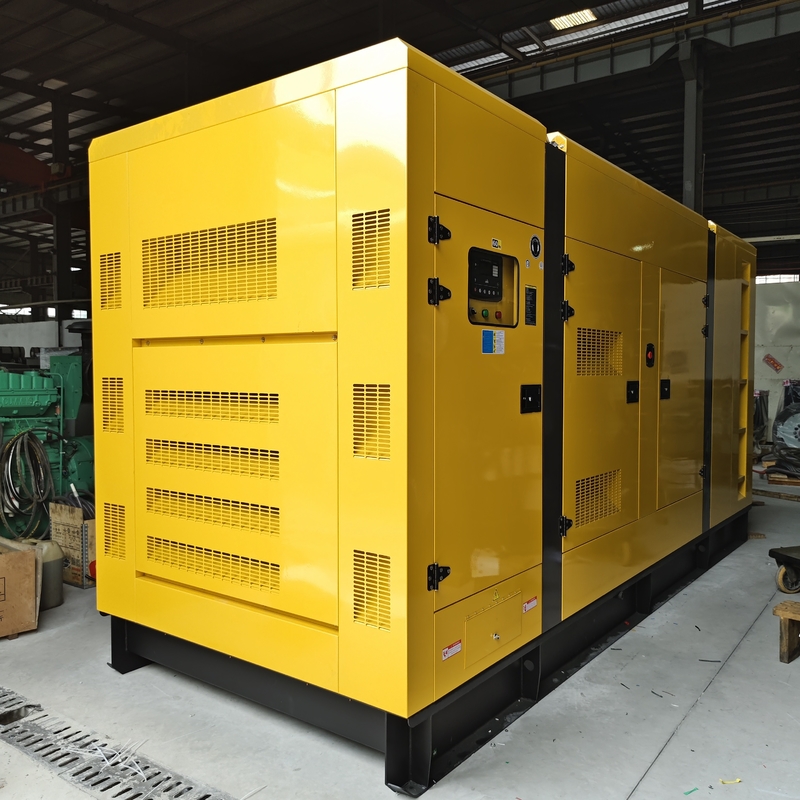

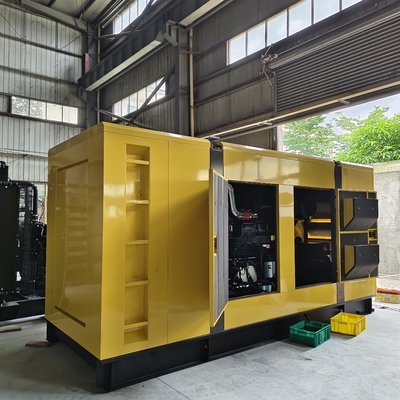

545kw Cummins Diesel Generator Set 750kva Soundproof Standby Generator With ATS
Advantages:
1.Reliable Performance:
Reliable performance is the major advantage of SHX products, which is based on the outstanding design in every aspect and strict QC system.
2.Customer First:
We devote ourselves to develop products to meet customer’s requirements. Our engineers develop and design new products for customers.
3. Technical Support and Service:
Our engineer team will solve your technical problems within 48 hours.
4.Strict test process before ex-factory:
Every product will be tested twice before ex-factory, free load and under load, all products are 100% ex-factory pass rate.
5.Certification:ISO9001:2015, TUV etc.
Genset Specifications
| Genset model | SHX-600 |
| Genset rated power | 545KW / 681KVA |
| Rated voltage | 127/220V (adjustable) |
| Rated current | 1788 Amps |
| Frequency | 60 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 4800×1800×2450 |
| Weight (kg) | 5500 |
Engine Specifications
| Diesel Engine | |
| Brand | CUMMINS |
| Model | KTAA19-G6A |
| Engine structure | 6 cylinders vertical in line, 4 stroke, turbocharged |
| Rotating speed | 1800 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 19 |
| Bore×Stroke(mm) | 159×159 |
| Compression ratio | 13.9: 1 |
| 100% Load fuel consumption (litre/h) | ≤147 |
| Lube capacity(L) | 38 |
Alternator Specifications
| Alternator | |
| Brand | Leroy Somer |
| Model | TAL-A473-D |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Standby Generator Set
Usually, the power required by the user is supplied by the mains, and the generator set sets up to ensure
the basic production and life of the user is the standby genset when the mains is cut off or when the power
supply is interrupted for other reasons.
This type of generator set is mainly located in the telecommunications sector, hospitals, and industrial and
mining enterprises, airports, television stations and other major power generations.
This type of genset is kept in standby state at all times, providing a continuous supply of power to non-constant
loads, with no restrictions on the duration of continuous operation.
Invitation to visit our factory
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou,
and 35 minutes away from Canton fair.
3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
|
