| Brand Name: | SHX |
| Model Number: | SHX-150 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

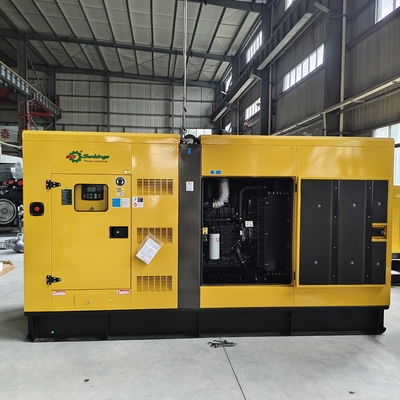

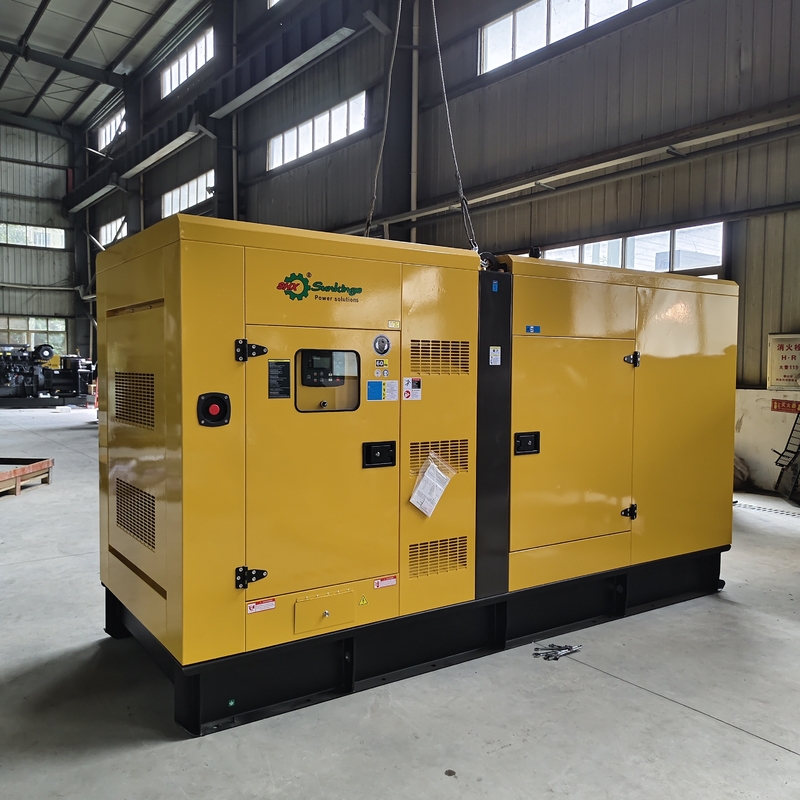

150kw Electric Diesel Generators 200kva 380V Industrial Genset Silent Generator
Standard Configuration of Diesel Generator Set Powered by Cummins Engine:
1) Cummins engine
2) Stamford alternator(Marathon, Mecc Alte, Wattek brand for option)
3) Deepsea DSE6020 control panel
4) Chint circuit breaker
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery, battery charger and battery isolator switch
8) Industrial silencer and flexible exhaust hose
Genset Specifications:
| Genset model | SHX-150 |
| Genset rated power | 150KW/188KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 270A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with radiator |
| Overall dimension (L×W×H) mm | 3500×1250×1900 |
| Weight (kg) | 2300 |
| Diesel Engine | |
| Brand | Cummins |
| Model | 6CTA8.3-G2 |
| Engine type | 6 cylinders in line, 4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 8.3 |
| Bore×Stroke (mm) | 114×135 |
| Compression ratio | 17.3:1 |
| 100% Load fuel consumption (L/h) | ≤40 |
| Lube capacity (L) | 23.8 |
| Alternator | |
| Brand | Farrand |
| Model | FLD274HS |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Radiator assembly; (4) Control panel; (5) Base frame; (6) Canopy. | |
Features
Invitation to visit our factory
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou,
and 35 minutes away from Canton fair.
3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
|
