| Brand Name: | SHX |
| Model Number: | SHX-1500 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

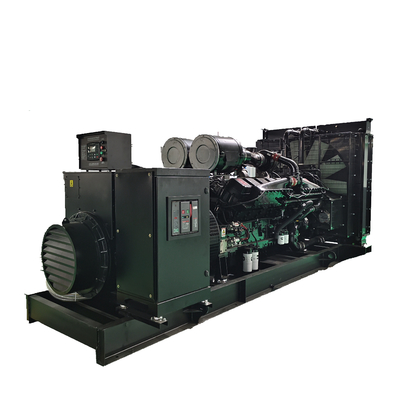

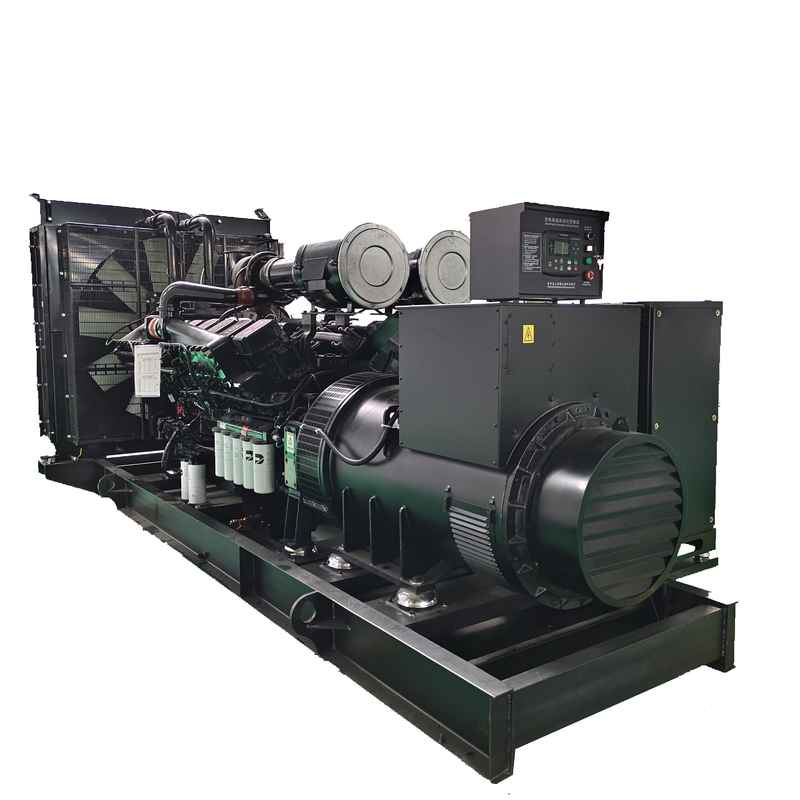

1350kw Backup Diesel Generator Indoor Use 50Hz 3 Phase 1500kw Cummins Generator Set
Features
1) Universal design and manufacture
2) Most widely used around the world
3) With most service terminals
4) Engineers are familiar with Cummins powered gensets
5) You could find spare-parts very easy
Genset Specifications
| Genset model | SHX-1500 |
| Genset rated power | 1350KW / 1688KVA |
| Rated voltage | 400V (adjustable) |
| Rated current | 2435 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 5800×2200×2500 |
| Weight (kg) | 13000 |
Engine Specifications
| Diesel Engine | |
| Brand | Cummins |
| Model | KTA50-G15X |
| Engine structure | 16 cylinders in-vee, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled with radiator |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 50.3 |
| Bore×Stroke(mm) | 159×159 |
| Compression ratio | 14.9: 1 |
| 100% Load fuel consumption (litre/h) | ≤357 |
| Lube capacity (L) | 204 |
Alternator Specifications
| Alternator | |
| Brand | Farrand |
| Model | FLD734C |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Why choose Cummins powered gensets?
1. Cummins engines which are made in China with the same standard of the US Cummins keep the quality
almost the same as the US Cummins.
2. More than 90% of the Engines components and spares are made in China which keeps the cost much lower.
3. Cummins engines are universally just as Cummins factories all around the world; all the spares are universal
which make the maintenance and reparation very simple.
4. Cummins has worldwide after-sales network, to whom you can get technical support and spares right near
your house.
5. Engineers are more familiar with Cummins engines because they are most widely use in every filed and
everywhere around the world.
Introduction of Guangdong Sunkings Electric Co., Ltd.
Guangdong Sunkings Electric Co., Ltd has more than 20 years experience in manufacturing and maintenance
of diesel generator sets. We mainly manufacture 20-2750KVA Cummins, Perkins, Weichai, Yuchai and Shangchai
powered diesel gensets which are all made in China keeps the genset cost much lower than the US or EU or the
Japan cost, since the design and all materials are same as original factories, the quality remains almost same as
original factories.
Invitation to visit our factory
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou,
and 35 minutes away from Canton fair.
3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
|
