| Brand Name: | SHX |
| Model Number: | SHX-2000 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

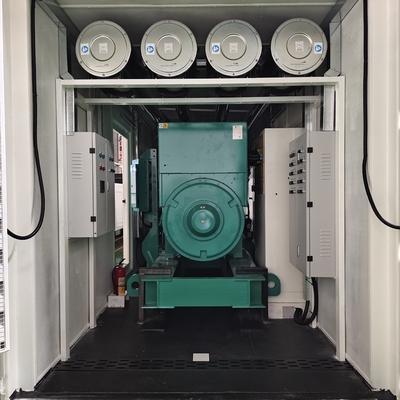

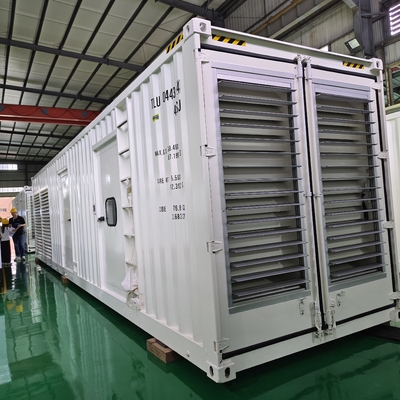

1600kw Generator Plant 2000kva Electric Diesel Generator For Power Station
Features
1) Universal design and manufacture
2) Most widely used around the world
3) With most service terminals
4) Engineers are familiar with Cummins powered gensets
5) You could find spare-parts very easy
Genset Specifications
| Genset model | SHX-2000 |
| Genset rated power | 1600KW / 2000KVA |
| Rated voltage | 230/400V |
| Rated current | 2886.8A |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 12192×2438×2896 |
| Weight (kg) | 22000 |
Engine Specifications
| Diesel Engine | |
| Brand | CUMMINS |
| Model | QSK50-G17 |
| Engine structure | 16 cylinders in vee, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 49.8 |
| Bore×Stroke(mm) | 159×159 |
| Compression ratio | 14.7: 1 |
| 100% Load fuel consumption (litre/h) | 386 |
| Lube capacity(L) | 151 |
Alternator Specifications
| Alternator | |
| Brand | LEROY SOMER |
| Model | LSA 52.3 S6 |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Parallel Control Panel
Parallel control panel enables two or more generator sets, or generator sets and the mains parallel to supply
electricity to loads. Parallel control panel box is GGD structure which has manual, semi-auto and auto control.
Manual parallel control panel: Operator analyzes and makes parallel work signal basing on the indicator in the
parallel control panel box to parallel generator sets. With parallel control panel, power supply can be flexible
controlled according to power needs.
OEM Service:
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to customer’s requirement.
4. Full warranty cover to support the customers.

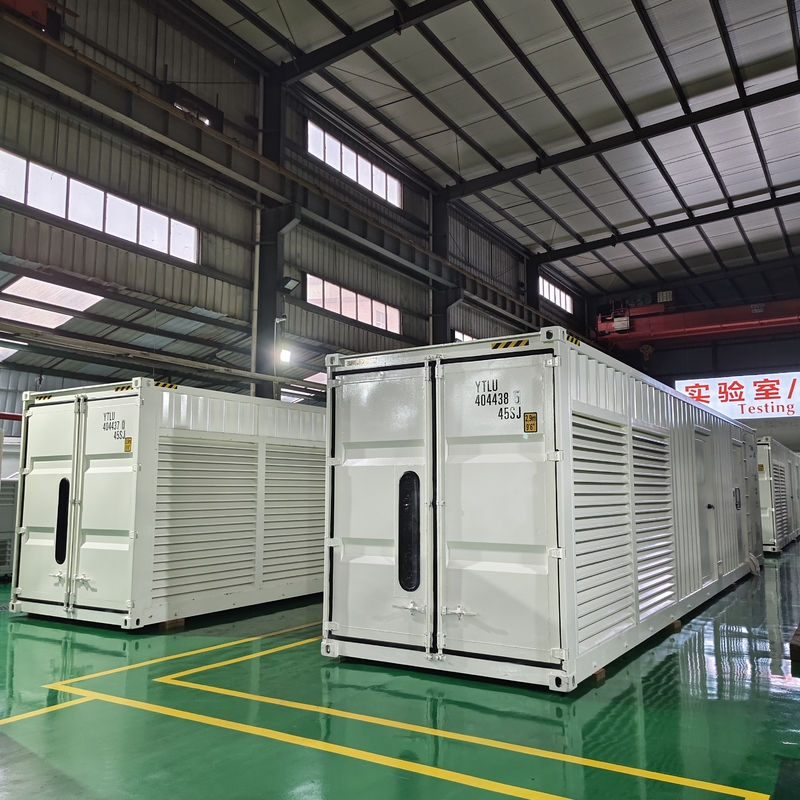

Invitation to visit our factory
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou,
and 35 minutes away from Canton fair.
3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
|
