| Brand Name: | SHX |
| Model Number: | SHX-700 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

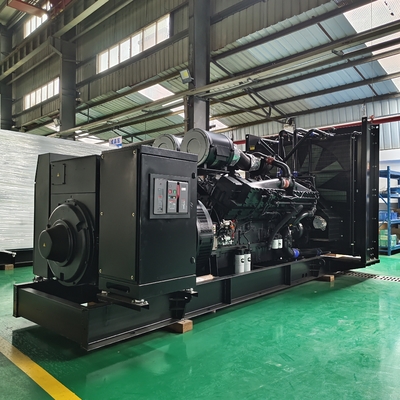

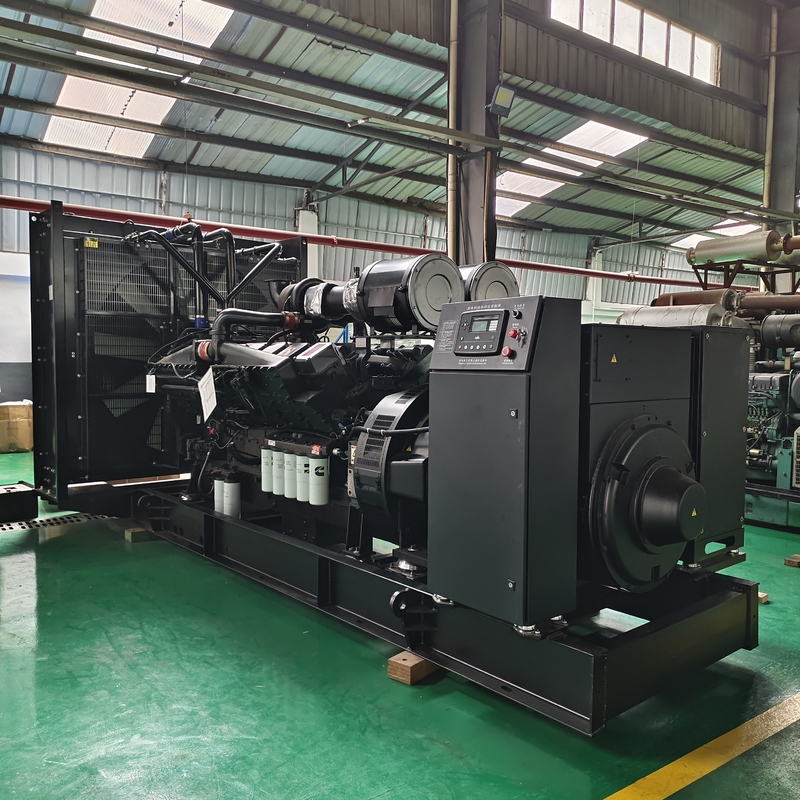

700kw Natural Gas Generator 875kva Natural Gas Powered Generator Set
Product Advantages:
1.Reliable Performance:
Reliable performance is the major advantage of SHX products, which is based on the outstanding design
in every aspect and strict QC system.
2.Customer First:
We devote ourselves to develop products to meet customer’s requirements. Our engineers develop and
design new products for customers.
3. Technical Support and Service:
Our engineer team will solve your technical problems within 48 hours.
4.Strict test process before ex-factory:
Every product will be tested twice before ex-factory, free load and under load, all products are 100% ex-factory
pass rate.
5.Certification:ISO9001:2015, TUV etc.
| Continue power | 700KW |
| Standby power | 770KW |
| Frequency | 60HZ |
| Rated voltage | 277/480V |
| Phase & Wire | 3P 4W |
| Power factor | 0.8 |
| Rated speed | 1800 |
| Cooling mode | Water cooled |
| Damping system | High elastic rubber shock absorber |
| Steady state voltage regulation rate % | ≤±1 |
| Transient voltage regulation rate % | ≤±15 |
| Voltage stabilization time S | ≤3 |
| Voltage fluctuation rate % | ≤±0.5 |
| Steady state current regulation rate % | ≤5 |
| Transient current regulation rate % | ≤±10 |
| Current stabilization time S | ≤3 |
| Current fluctuation rate % | ≤0.5 |
| Generator controller | Smartgen HGM6110N |
| Breaker | DELIXI MCCB |
| Overall dimension of unit (Silent type ) | 6058×2438×2896 mm (Reference) |
| Unit weight ( Silent type ) | 15000KG |
Gas Engine Parameters
|
Brand
|
CCEC | Continue power | 1100KW(The customer's gas source is calibrated as 70% of natural gas, which is 770KW) |
| Engine Model | K50N-G10 | Gas pressure | 55PSI=379KPA |
| Fuel type | Asociated Gas | Speed governor | Electronic governor |
| Fuel consumption | 9.0 MJ/kw.h | Oil capacity (L) | 234.7 |
| Rated speed | 1800 | Bore*stroke | 159×159mm |
| Displacement (L) | 50.3 | Cooling method | Water cooled |
| Compression ratio | 11.5:1 | Starting voltage | DC 24V |
| Engine Characters | Water-cooling, V type 16 cylinder, 4 Stroke | Crankshaft rotation direction | anticlockwise(facing flywheel) |
| Starting method | Electric start | Model of lubricating oil | 15W-40CH and above |
| Intake type | Turbocharged Aftercooled |
Alternator Parameters
| Brand | Leroy Somer | Place of Origin | Fuzhou,China |
| Model | TAL-A49-B | Capacity (KW) | 732 |
| Excitation mode | Pure copper self excitation without brush | Frequency(HZ) | 60 |
| Cooling mode | Natural cooling | Voltage regulating system | AVR Automatic voltage regulation |
| Degree of protection | IP23 | Insulation class | H |
Why choose us?
1.Sunkings is the first group of trade assurance suppliers, agree to abide product quality and delivery obligations.
100% payment refund against delivery time.
2.Alibaba Assessed 4 years Gold Supplier.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipment.
5.Best Quality & Best Service with Competitive price.
OEM Service:
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to customer’s requirement.
4. Full warranty cover to support the customers.
Invitation to visit our factory
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou,
and 35 minutes away from Canton fair.
3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
|
|
