| Brand Name: | SHX |
| Model Number: | SHX-1250 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

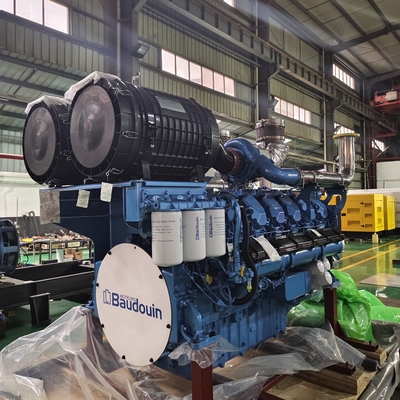

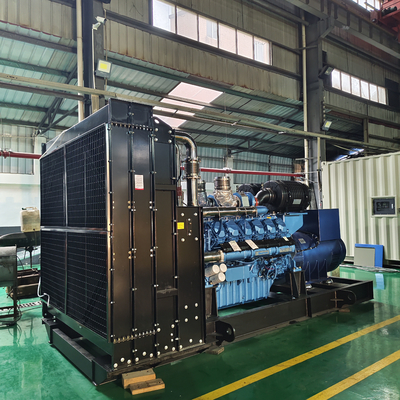

50Hz 400V 1 Megawatt Genset Diesel Generator 1250kva Weichai Baudouin Generator
Power Specifications
1) 1500RPM at 50Hz
2) Water Cooled
3) Turbocharged
Electrical Specifications
1) Power Factor: 0.8 Lagging
2) 3 Phase 4 Pole
3) Insulation: Class H
4) Brushless
5) Self-Excited
6) IP23 Protection
7) AVR regulation
8) Starting by Battery
Genset full specifications
| Genset model | SHX-1250 |
| Genset rated power | 1000KW/1250KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 1804A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with radiator |
| Overall dimension (L×W×H) mm | 5800×2200×2500 |
| Weight (kg) | 10000 |
| Diesel Engine | |
| Brand | Baudouin |
| Model | 12M33G1400/5 |
| Engine type | 12 cylinders in vee, 4 stroke |
| Aspiration | Turbocharged and Aftercooled |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled with radiator |
| Fuel system | Mechanical pump |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 39.2 |
| Bore×Stroke (mm) | 150×185 |
| Compression ratio | 15: 1 |
| 100% Load fuel consumption (g/kw.h) | 197.5 |
| Lube capacity (L) | 155 |
| Alternator | |
| Brand | Leroy Somer |
| Model | LSA50.2M6 |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |

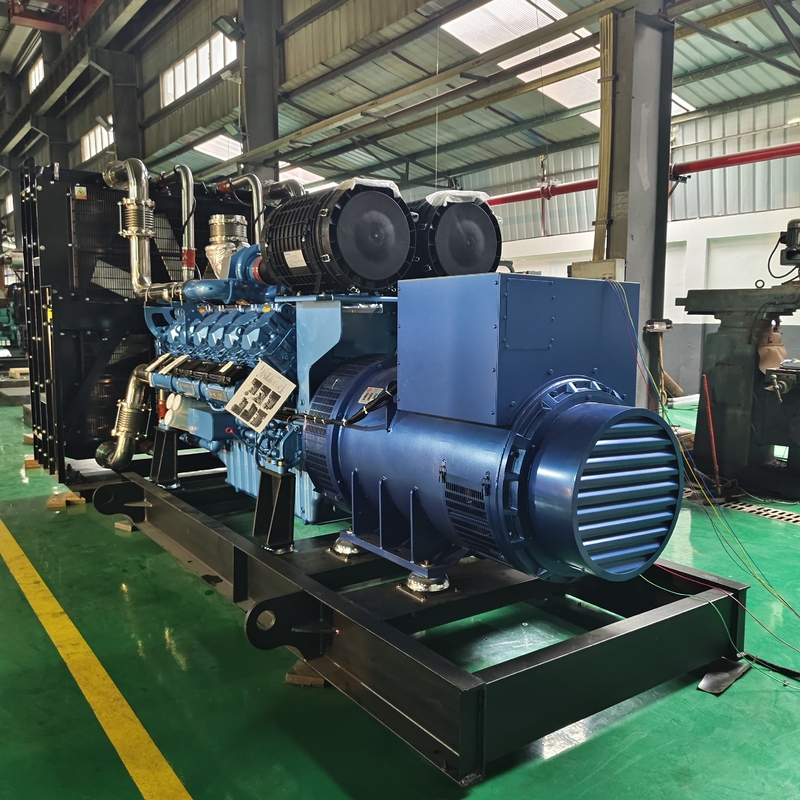

| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Radiator assembly; (4) Control panel; (5) Base frame. | |
INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption
in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the
purchaser in advance of the test date notification.
1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment
rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the
purchasers satisfaction at the manufacturer’s cost.
1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.
1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with all
auxiliaries, instruments and controls for a complete test of the generator set.
FAQ
1.What is the power range of your diesel generator sets?
Answer: We can provide diesel generator sets from 25kva to 2750kva.
2.What is your payment term?
Answer: We can accept T/T and L/C.
3.What is your warranty?
Answer: One year or 1000 running hours whichever comes first.
4.What is your MOQ?
Answer: MOQ is 1 set.
5.What is the frequency and voltage standard or your diesel generator sets?
Answer: 50Hz / 60Hz, 480/277V, 415/240V, 400/230V, 380/220V or requested voltage.
6.Do you offer OEM service?
Answer: Yes.
7.What is your delivery time?
Answer: Average 20 days.
|
|
