| Brand Name: | SHX |
| Model Number: | SHX-1000 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

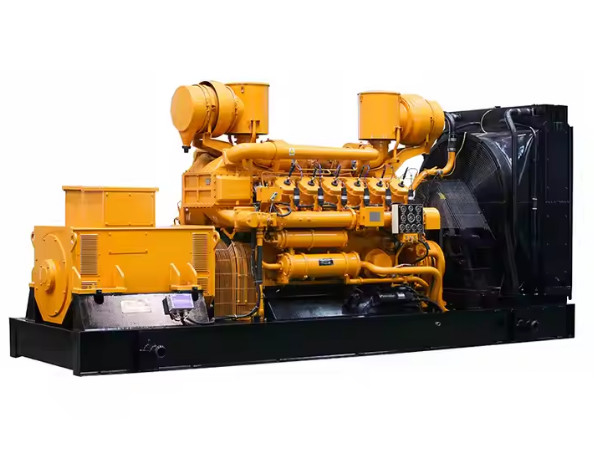

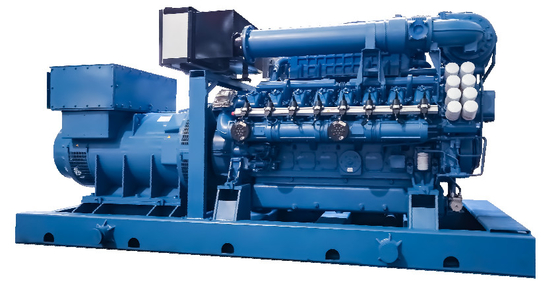

1 Mw Natural Gas Generator 1250kVA 1000kW 1 Mw Generator Biogas Power Plant
Why choose Cummins powered gensets?
1. Cummins engines which are made in China with the same standard of the US Cummins keep the
quality almost the same as the US Cummins.
2. More than 90% of the Engines components and spares are made in China which keeps the cost
much lower.
3. Cummins engines are universally just as Cummins factories all around the world; all the spares
are universal
which make the maintenance and reparation very simple.
4. Cummins has worldwide after-sales network, to whom you can get technical support and spares right
near your house.
5. Engineers are more familiar with Cummins engines because they are most widely use in every filed and
everywhere
around the world.
| Genset Data |
Brand | SHX |
| Frequency | 50Hz | |
| Speed | 1500RPM | |
| Voltage | 400V | |
| Current | 1804A | |
| Start mode | Electric | |
| Phase & wires | 3 phase 4 wire | |
| Power factor | COSΦ=0.8(lagging) | |
| Protection | Low oil-pressure, Over-speed, Over-current, High Coolant temperature, Over load, Over/under/unbalance voltage. | |
| Gas consumption | 9.0 MJ/kwh @100% load | |
| Dimension (L*W*H) | 5000*2000*2550mm | |
| Weight | 9000kg | |
| Engine Data |
Brand | CCEC Cummins |
| Model | K50N-G10 | |
| Continuous power | 1100kW | |
| Engine type | 60° Vee, 4 cycle, 16 cylinder | |
| Aspiration | Turbocharged and Aftercooled | |
| Speed | 1500RPM | |
| Bore*Stroke | 159*159 | |
| Compression ratio | 11.5:1 | |
| Gas type | Natural gas | |
| Gas pressure | 5-20kPa | |
| LHV (low heat value) | ≥15 MJ/m³ (400BTU/ft³) | |
| Methane | ≥75% | |
| Oil capacity | 172-204L | |
| Oil consumption | <0.2 g/kW.h | |
| Cooling system | 2 Pump 2 Loop | |
| Maintenance interval | 1000 hours | |
| Start mode | DC 24V electric start | |
| Displacement | 50.3L | |
| Alternator Data |
Brand | Leroy Somer |
| Model | LSA 50.2 M6 | |
| Rated power | 1250kVA / 1000kW | |
| Frequency & Speed | 50Hz, 1500RPM | |
| System | Brushless, Self-excited, Synchronous, Single bearing | |
| Insulation & Protection | H, IP23 | |
| Materials | 100% copper | |
| Voltage regulator | AVR |
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both
sides for 50%.
4) 24 hours service hotline is available for customers.
Features
1) Universal design and manufacture
2) Most widely used around the world
3) With most service terminals
4) Engineers are familiar with Cummins powered gensets
5) You could find spare-parts very easy
Why choose us?
1.Sunkings is the first group of trade assurance suppliers, agree to abide product quality and delivery
obligations.100% payment refund against delivery time.
2.Alibaba Assessed 4 years Gold Supplier.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipment.
5.Best Quality & Best Service with Competitive price.
|
|
