| Brand Name: | SHX |
| Model Number: | SHX-1250 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

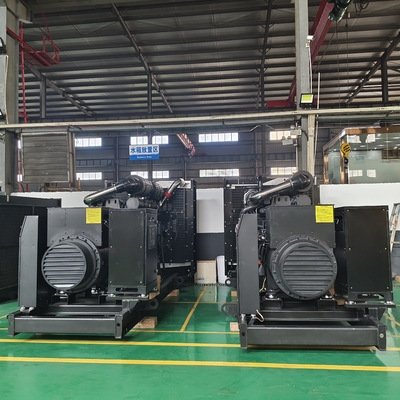

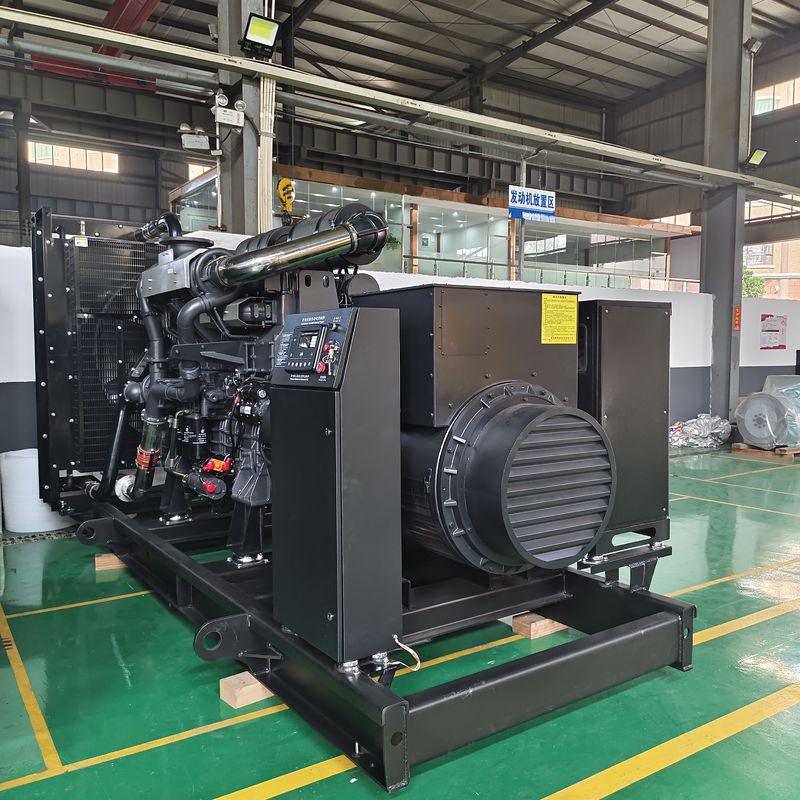

1000KW 50Hz Electric Diesel Generator 1250KVA 1MW SDEC Power Generator For Factory
Why choose us?
1.Sunkings is the first group of trade assurance suppliers, agree to abide product quality and delivery
obligations.100% payment refund against delivery time.
2.Alibaba Assessed 4 years Gold Supplier.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipment.
5.Best Quality & Best Service with Competitive price.
Genset Specifications
| Genset model | SHX-1250 |
| Genset rated power | 1000KW/1250KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 1804A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with radiator |
| Overall dimension (L×W×H) mm | 4500×1800×2300 |
| Weight (kg) | 7000 |
| Diesel Engine | |
| Brand | SDEC Power |
| Model | 6WTAA35-G311 |
| Engine type | 6 cylinders in-line, water-cooling, 4 stroke |
| Aspiration | Turbocharged and intercooled |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled with radiator |
| Speed governing system | ECU |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 35.1 |
| Bore×Stroke (mm) | 186×215 |
| Compression ratio | 16: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤195 |
| Lube capacity (L) | 75-100 |
| Alternator | |
| Brand | Faraday |
| Model | FD6E-4 |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Radiator assembly; (4) Control panel; (5) Base frame. | |
Product Advantages
1) Low exhaust gas
2) Independent fuel direct gush-oil system
3) Low fuel consumption
4) Steady performance
5) Good power-weight ratio
6) Small, compact structure, beautiful appearance
7) Easy to facilitate installation, easy to maintenance
INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption
in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser
in advance of the test date notification.
1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected
shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the
purchasers satisfaction at the manufacturer’s cost.
1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.
1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with all
auxiliaries, instruments and controls for a complete test of the generator set.
Invitation to visit our factory
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou,
and 35 minutes away from Canton fair.
3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
|
|
