| Brand Name: | SHX |
| Model Number: | SHX-688 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |

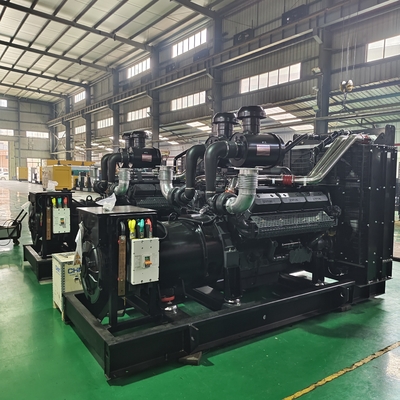

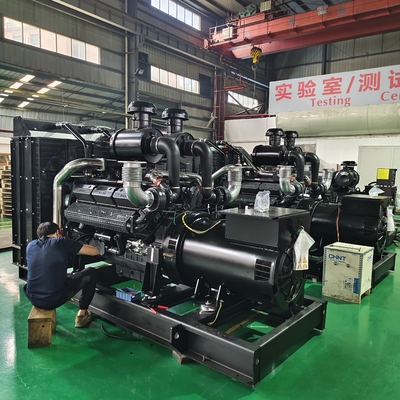

500KW SDEC Engine Power Diesel Generator 625KVA 3 Phase 400V China Branded Genset
Advantages:
1.Reliable Performance:
Reliable performance is the major advantage of SHX products, which is based on the outstanding design
in every aspect and strict QC system.
2.Customer First:
We devote ourselves to develop products to meet customer’s requirements. Our engineers develop and
design new products for customers.
3. Technical Support and Service:
Our engineer team will solve your technical problems within 48 hours.
4.Strict test process before ex-factory:
Every product will be tested twice before ex-factory, free load and under load, all products are 100%
ex-factory pass rate.
5.Certification:ISO9001:2015, TUV etc.
Genenerator Set Specifications
| Genset Model | SHX-688 |
| Prime Power | 500KW/625KVA |
| Standby Power | 550KW/688KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 400V |
| Frequency | 50Hz |
| Rated Current | 902A |
| Genset Structure | Open type |
| Dimension | 3800×1600×2100mm |
| Net Weight | 4000KG |
| Engine Model | SDEC SC27G830D2 |
| Engine Features | 12 cylinder, 4 stroke, water cooled, turbocharged |
| Bore*Stroke | 135×155mm |
| Displacement | 26.6L |
| 12-hour Power | 561KW |
| Fuel Consumption | 202g/kw.h |
| Compression Ratio | 16:1 |
| Governor type | Electronic |
| Alternator Model | Faraday FD5L-4 |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |
| Smartgen HGM6110N | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
Introduction of Guangdong Sunkings Electric Co., Ltd.
Guangdong Sunkings Electric Co., Ltd has more than 20 years experience in manufacturing and maintenance
of diesel generator sets. We mainly manufacture 20-2750KVA Cummins, Perkins, Weichai, Yuchai and Shangchai
powered diesel gensets which are all made in China keeps the genset cost much lower than the US or EU or the
Japan cost, since the design and all materials are same as original factories, the quality remains almost same as
original factories.
Parallel Control Panel
Parallel control panel enables two or more generator sets, or generator sets and the mains parallel to supply
electricity to loads. Parallel control panel box is GGD structure which has manual, semi-auto and auto control.
Manual parallel control panel: Operator analyzes and makes parallel work signal basing on the indicator in the
parallel control panel box to parallel generator sets.
With parallel control panel, power supply can be flexible controlled according to power needs.
FAQ
1.What is the power range of your diesel generator sets?
Answer: We can provide diesel generator sets from 25kva to 2750kva.
2.What is your payment term?
Answer: We can accept T/T and L/C.
3.What is your warranty?
Answer: One year or 1000 running hours whichever comes first.
4.What is your MOQ?
Answer: MOQ is 1 set.
5.What is the frequency and voltage standard or your diesel generator sets?
Answer: 50Hz / 60Hz, 480/277V, 415/240V, 400/230V, 380/220V or requested voltage.
6.Do you offer OEM service?
Answer: Yes.
7.What is your delivery time?
Answer: Average 20 days.
|
|
